Steering column for BMW 2500-3.3Li 3.0Si (1973)

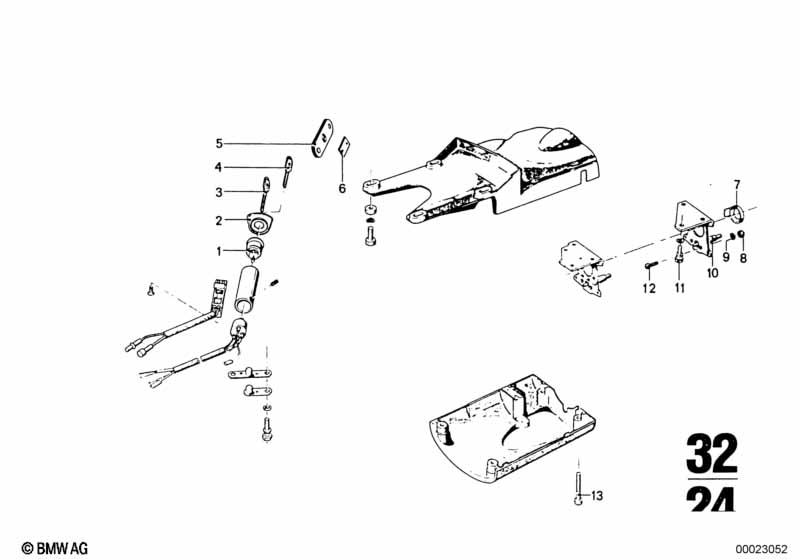

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Late version | ||||||||||
| 01 | Lock cylinder with key | 1 | 05/1971 | 02/1977 | 32321109048 | $80.50 | ENDED | Shop at ECS Tuning | ||
| 01 | Lock (with key code) | 1 | 05/1971 | 02/1977 | 32321110017 | $215.76 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | 1 | 05/1971 | 02/1977 | 32321108979 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 03 | General key (blank) | 1 | 32321104229 | $13.46 | Shop at ECS Tuning | |||||
| 04 | Standard key blank | 1 | 32321104228 | $4.58 | ENDED | Shop at ECS Tuning | ||||
| 05 | Key case | 1 | 51218213607 | $9.15 | Shop at ECS Tuning | |||||
| 06 | Key label | 1 | 32321119188 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex nut | M5-8-ZNNIV SI | 2 | 08/1968 | 02/1977 | 07119905729 | Shop at ECS Tuning | |||
| 09 | Wave washer | B5 | 2 | 08/1968 | 02/1977 | 07119932098 | $0.38 | Shop at ECS Tuning | ||
| 10 | Carbon pin | 1 | 08/1968 | 02/1977 | 32331350750 | $7.64 | ENDED | Shop at ECS Tuning | ||
| 11 | Fracture bolt | M6X14 | 4 | 08/1968 | 02/1977 | 32321109641 | $1.39 | Shop at ECS Tuning | ||
| 12 | Fillister head screw | M5X12-ZN | 2 | 08/1968 | 02/1977 | 07119907627 | $0.43 | Shop at ECS Tuning | ||
| 13 | Fillister head screw | M6X55 | 4 | 08/1968 | 02/1977 | 07119906437 | $0.45 | ENDED | Shop at ECS Tuning | |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0Si Steering column?
- This technical diagram illustrates the Steering column within the Steering group for the 2500-3.3Li 3.0Si produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Lock cylinder with key (Part #32321109048).
- Which models use the hardware listed in this Steering column?
- The hardware and components featured in the Steering column are specific to the 2500-3.3Li 3.0Si produced during 1973. These technical specifications ensure that parts like the Lock cylinder with key (32321109048) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering column assembly?
- Each item in the Steering column corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0Si, you can identify the Lock cylinder with key by locating its position on the schematic, which then links to the official BMW part number 32321109048 for the Steering section.
