Steering column for BMW 2500-3.3Li 2800

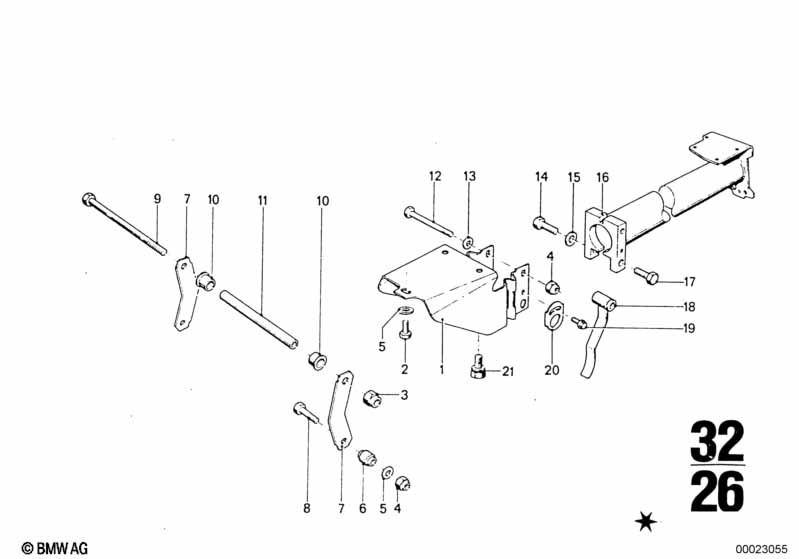

This Steering column technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting bracket | 1 | 32311113630 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hex bolt | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M8 | 3 | 03/1987 | 07129922714 | $0.17 | ENDED | Shop at ECS Tuning | ||
| 04 | Self-locking hex nut | M8-8-ZNNI SI | 3 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 05 | Washer | 3 | 32312782173 | $0.80 | Shop at ECS Tuning | |||||
| 06 | Rubber Mounting | 2 | 32311109031 | $11.56 | Shop at ECS Tuning | |||||
| 07 | Lever | 2 | 32311112650 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X35 | 2 | 07119913676 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Set bolt 5 | M10X150 | 1 | 09/1973 | 02/1977 | 07509064624 | ENDED | Shop at ECS Tuning | ||
| 10 | Bushing | 2 | 32311114416 | $0.68 | ENDED | Shop at ECS Tuning | ||||
| 11 | Spacer sleeve | 1 | 09/1973 | 02/1977 | 32311111806 | ENDED | Shop at ECS Tuning | |||
| 12 | Hexagon bolt | M8X65 | 1 | 02/2000 | 07119903018 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X65 | 1 | 41117006311 | $6.28 | Shop at ECS Tuning | ||||
| 13 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M10X22 | 1 | 07119911834 | ENDED | Shop at ECS Tuning | ||||
| 15 | Securing plate | 10,5 | 1 | 07119935632 | ENDED | Shop at ECS Tuning | ||||
| 16 | Clamping | 1 | 32311121211 | $18.97 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M10X22LH | 1 | 07119911835 | ENDED | Shop at ECS Tuning | ||||
| 18 | Lever | 1 | 32311152992 | $7.48 | Shop at ECS Tuning | |||||
| 19 | Hex bolt with washer | M6X10-Z3-2 | 1 | 07119915011 | ENDED | Shop at ECS Tuning | ||||
| 20 | Securing plate | 1 | 32311108837 | $2.12 | ENDED | Shop at ECS Tuning | ||||
| 21 | Hex bolt with washer | M8X16-Z3-2 | 2 | 07119915071 | $0.47 | Shop at ECS Tuning |
