Hydro steering-oil pipes for BMW 3 Series E46 323i (2000)

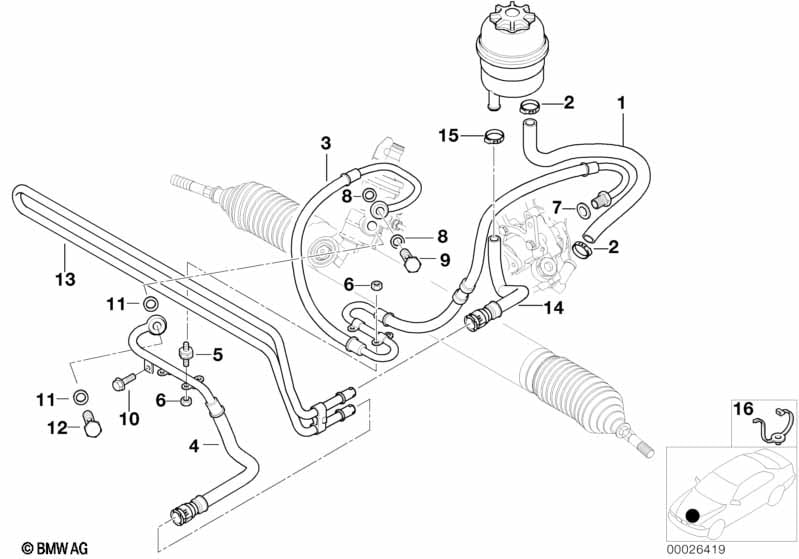

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 32411095526 | $32.68 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D=20,9-24,1 | 2 | 09/2001 | 32111131345 | $2.12 | Shop at ECS Tuning | |||
| fitted alternatively | ||||||||||
| 03 | Pressure hose assy | 1 | 06/2000 | 12/2000 | 32416777273 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Power steering pump | LUK LF-30 | X | 06/2000 | 12/2000 | 32411094965 | $445.59 | ENDED, +core | Shop at ECS Tuning | |
| Before ordering pressure hose, repair history of vehicle and PUMA Measure No. AG 4 690692 (current release) must be observed! |
||||||||||
| 03 | Pressure hose assy | 1 | 09/1999 | 09/2001 | 32416764728 | Shop at ECS Tuning | ||||
| fitted alternatively Before ordering pressure hose, repair history of vehicle and PUMA Measure No. AG 4 690692 (current release) must be observed! |
||||||||||
| 03 | Pressure hose assy | 1 | 06/2000 | 12/2000 | 32416764728 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Vane pump | LUK LF-20 | X | 06/2000 | 12/2000 | 32416750423 | $530.10 | ENDED, +core | Shop at ECS Tuning | |
| -- | Vane pump | LUK LF-20 | X | 06/2000 | 12/2000 | 32416760036 | $445.59 | +core | Shop at ECS Tuning | |
| fitted alternatively | ||||||||||
| 04 | Return pipe | 1 | 06/2000 | 12/2000 | 32411094953 | $86.44 | +core | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Power steering pump | LUK LF-30 | X | 06/2000 | 12/2000 | 32411094965 | $445.59 | ENDED, +core | Shop at ECS Tuning | |
| Before ordering return line, repair history of vehicle and PUMA Measure No. AG 4690692 (current release) must be observed! |
||||||||||
| 04 | Return pipe | 1 | 09/1999 | 32416774214 | $86.44 | Shop at ECS Tuning | ||||
| fitted alternatively Before ordering return line, repair history of vehicle and PUMA Measure No. AG 4690692 (current release) must be observed! |
||||||||||
| 04 | Return pipe | 1 | 06/2000 | 12/2000 | 32416774214 | $86.44 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Vane pump | LUK LF-20 | X | 06/2000 | 12/2000 | 32416750423 | $530.10 | ENDED, +core | Shop at ECS Tuning | |
| -- | Vane pump | LUK LF-20 | X | 06/2000 | 12/2000 | 32416760036 | $445.59 | +core | Shop at ECS Tuning | |
| 05 | Rubber buffer | 3 | 64119175671 | $4.25 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNS3 | 6 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 09 | Banjo bolt with check valve | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A16X22-CUSN | 2 | 10/2005 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 11 | Gasket ring | A16X22 SFCU F22 | 2 | 32416773722 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||

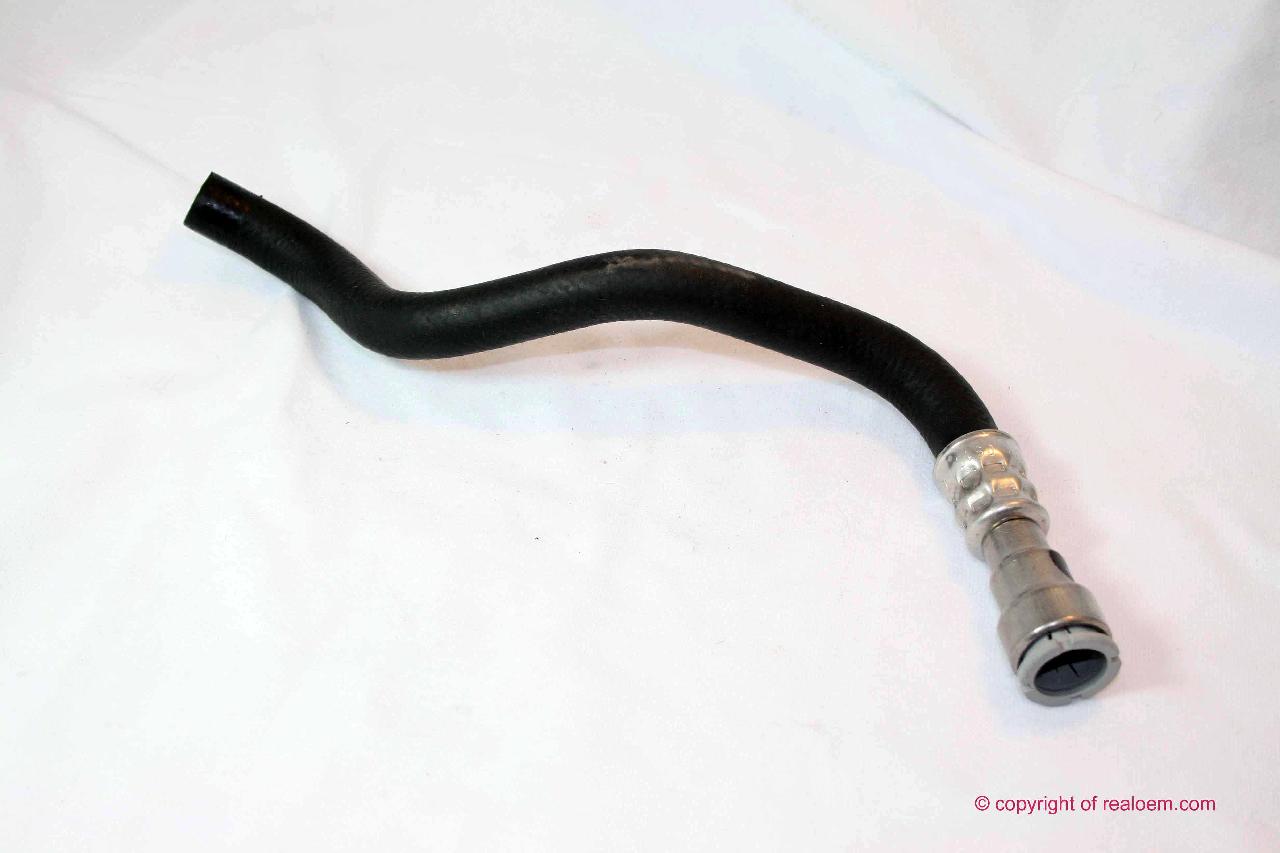

| 13 | Cooling coil | 1 | 17111436262 | $57.27 | Shop at ECS Tuning | |||||
| 14 | radiator return line | 1 | 32416796390 | Shop at ECS Tuning | ||||||
| 15 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| 16 | Cable strap with bracket | Ø=7,7 / L=200 | 2 | 61136924664 | $0.55 | Shop at ECS Tuning | ||||
