Power steering pump for BMW 7 Series E38 740d (2000)

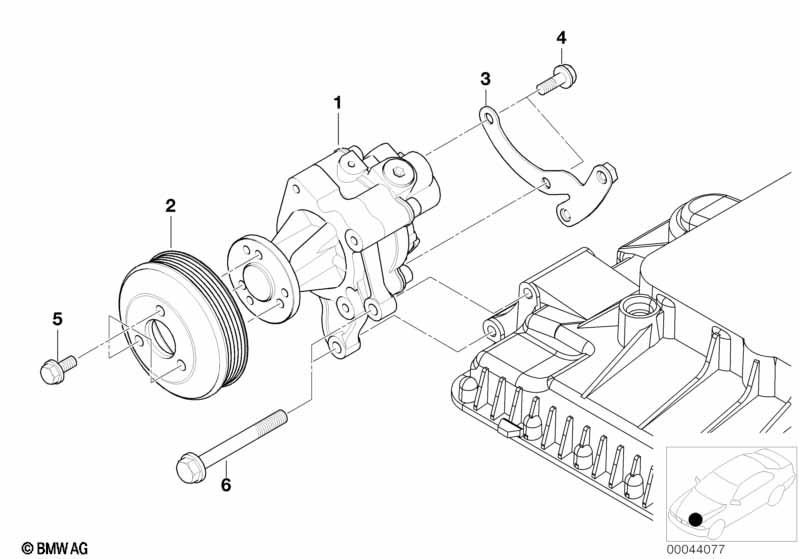

This Power steering pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power steering pump | LUK LF-68 | 1 | 32416752004 | +core | Shop at ECS Tuning | ||||
| 02 | Pulley | 1 | 32422248207 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Rear vane pump bracket | 1 | 32422248206 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X22 | 2 | 07119905739 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X18-U1-8.8 | 3 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X90-U1 | 2 | 07119905392 | $1.53 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740d Power steering pump?
- This technical diagram illustrates the Power steering pump within the Steering group for the 7 Series E38 740d produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Power steering pump (Part #32416752004).
- Which models use the hardware listed in this Power steering pump?
- The hardware and components featured in the Power steering pump are specific to the 7 Series E38 740d produced during 2000. These technical specifications ensure that parts like the Power steering pump (32416752004) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering pump assembly?
- Each item in the Power steering pump corresponds to the numbered list below the illustration. For the 7 Series E38 740d, you can identify the Power steering pump by locating its position on the schematic, which then links to the official BMW part number 32416752004 for the Steering section.
