Hydro steering-oil pipes for BMW 7 Series E38 740d (2000)

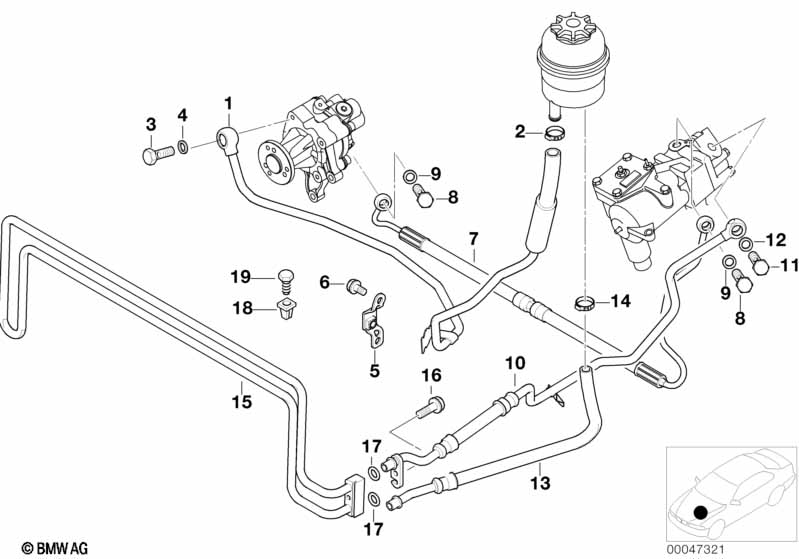

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 32411097318 | +core | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D=20,9-24,1 | 1 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 03 | Hollow bolt | M18X32 | 1 | 32411117183 | $7.53 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket ring | A18X24-CUSN | 2 | 32411093598 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Bracket, hose line | 1 | 32411096888 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Pressure hose assy | 1 | 32411096883 | +core | Shop at ECS Tuning | |||||
| 08 | Hollow bolt | M14X1,5X26 | 2 | 32416852469 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A14X20-CUSN | 4 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 10 | Return pipe | 1 | 32411096886 | +core | Shop at ECS Tuning | |||||
| 11 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 12 | Gasket ring | A16X22-CUSN | 2 | 32411093597 | $0.27 | Shop at ECS Tuning | ||||
| 13 | radiator return line | 1 | 32411097319 | Shop at ECS Tuning | ||||||
| 14 | Hose clamp | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 15 | Cooling coil | 1 | 17212248570 | Shop at ECS Tuning | ||||||
| 16 | Screw | M8X28-Z3 | 1 | 06/2000 | 17227555715 | $0.78 | Shop at ECS Tuning | |||
| 16 | Hex bolt with washer | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 17 | O-ring | 10,82X1,78/FPM | 2 | 17211742636 | $0.80 | Shop at ECS Tuning | ||||
| 18 | Expanding nut | 1 | 52531451393 | $0.75 | ENDED | Shop at ECS Tuning | ||||
| 19 | Hex head screw | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
