Hydro steering box for BMW 5 Series E39 528i (2000)

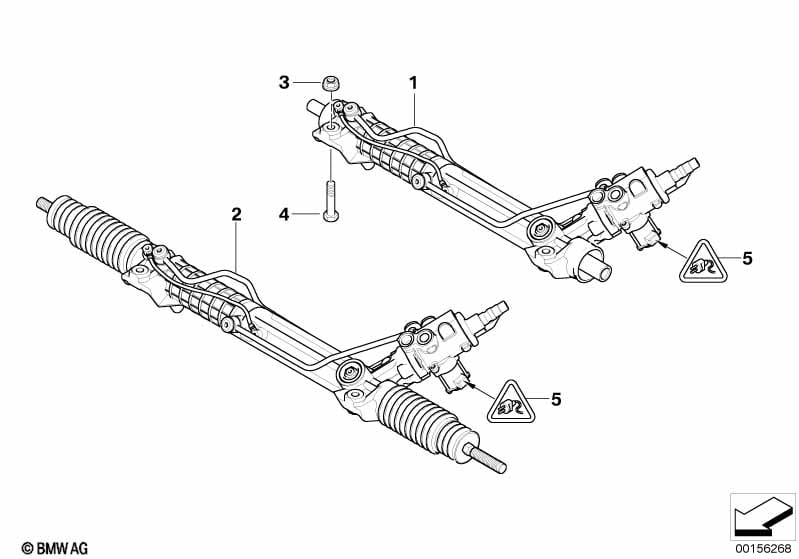

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Concluding Text CONTROL UNIT SERVOTRONIC IS INCLUDED IN BASIC MODULE, MAIN GROUP 61 . |
|||||||||
| 02 | RP REMAN hydraulic steering gear | 1 | 32136751745 | $1622.70 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Servotronic |
=Yes |
|||||||||
| 02 | RP REMAN hydraulic steering gear, SVT | 1 | 06/1999 | 32136757877 | $1833.65 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | 2 | 32131094231 | $3.02 | Shop at ECS Tuning | |||||
| For vehicles with Servotronic |
=Yes |
|||||||||
| 05 | Universal socket housing uncoded | 2 POL. | 1 | 61131392246 | $5.53 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 2 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 2 | 61130056961 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
