Steering wheel Airbag-Smart for BMW 3 Series E46 323i (2000)

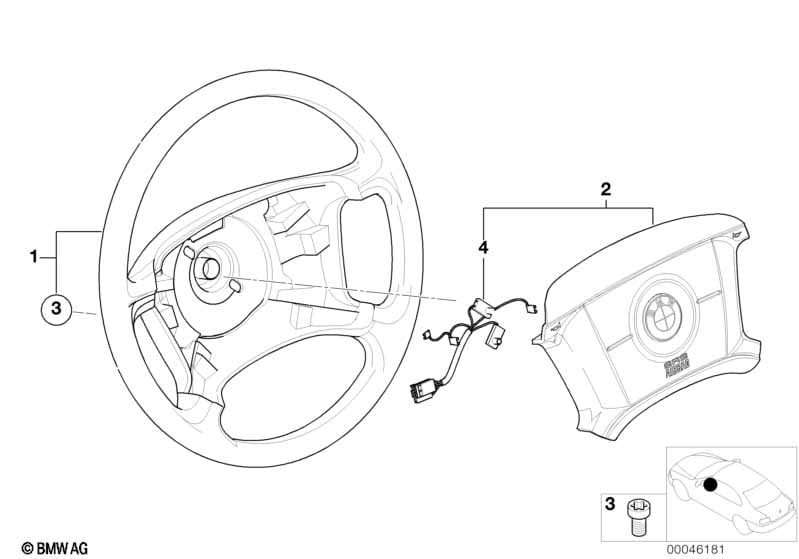

This Steering wheel Airbag-Smart technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced from 06/01/2000 |
|||||||||
| 01 | Steering wheel,foam plastic airbag | 1 | 06/2000 | 32346753948 | $252.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Leather steering wheel | 1 | 06/2000 | 32346753947 | $368.95 | Shop at ECS Tuning | ||||
| 02 | Hub cap, airbag | 1 | 32306880600 | Shop at ECS Tuning | ||||||
| 03 | Torx screw | M6X15 8.8 T30 | 2 | 06/2000 | 32341097110 | $1.41 | Shop at ECS Tuning | |||
| 04 | Connecting line, airbag / slip ring | 1 | 06/2000 | 32306750166 | $14.72 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i Steering wheel Airbag-Smart?
- This technical diagram illustrates the Steering wheel Airbag-Smart within the Steering group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Steering wheel,foam plastic airbag (Part #32346753948).
- Which models use the hardware listed in this Steering wheel Airbag-Smart?
- The hardware and components featured in the Steering wheel Airbag-Smart are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Steering wheel,foam plastic airbag (32346753948) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering wheel Airbag-Smart assembly?
- Each item in the Steering wheel Airbag-Smart corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Steering wheel,foam plastic airbag by locating its position on the schematic, which then links to the official BMW part number 32346753948 for the Steering section.
