M sports strng whl,airb.-smart,multifunc for BMW 5 Series E39 525d (2003)

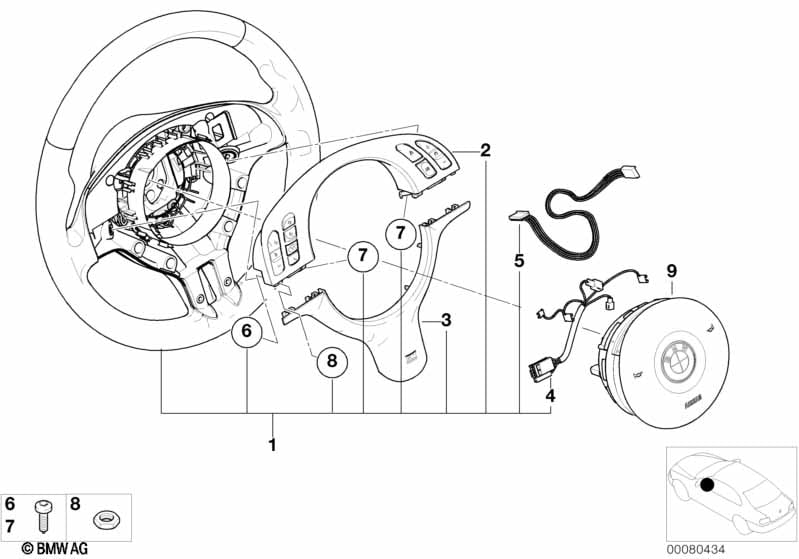

This M sports strng whl,airb.-smart,multifunc technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Slip ring, see HG 61, integrated Support f steering column switch |
|||||||||
| 01 | M sports strng whl,airb.leath.,multifunc | SCHWARZ/SCHWARZ | 1 | 09/2001 | 32342282025 | $511.00 | ENDED | Shop at ECS Tuning | ||
| 02 | Switch, multifunct. steering wheel | 1 | 09/2001 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| 03 | M cover | SCHWARZ | 1 | 09/2001 | 32347833355 | $141.43 | Shop at ECS Tuning | |||
| 04 | Connecting line, airbag / slip ring | 1 | 09/2001 | 32301097246 | $28.75 | Shop at ECS Tuning | ||||
| 05 | connecting line, steering wheel | 1 | 09/2001 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| 06 | Screw Torx drive | M4X12 | 6 | 09/2001 | 07129904977 | $0.50 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M4X15 | 2 | 09/2001 | 32301096839 | $0.45 | Shop at ECS Tuning | |||
| 08 | Plug-in nut | M4 | 6 | 09/2001 | 32301096840 | $2.91 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d M sports strng whl,airb.-smart,multifunc?
- This technical diagram illustrates the M sports strng whl,airb.-smart,multifunc within the Steering group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the M sports strng whl,airb.leath.,multifunc (Part #32342282025).
- Which models use the hardware listed in this M sports strng whl,airb.-smart,multifunc?
- The hardware and components featured in the M sports strng whl,airb.-smart,multifunc are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the M sports strng whl,airb.leath.,multifunc (32342282025) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M sports strng whl,airb.-smart,multifunc assembly?
- Each item in the M sports strng whl,airb.-smart,multifunc corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the M sports strng whl,airb.leath.,multifunc by locating its position on the schematic, which then links to the official BMW part number 32342282025 for the Steering section.
