M sports strng whl,leather,airbag-smart for BMW 3 Series E46 318i (2003)

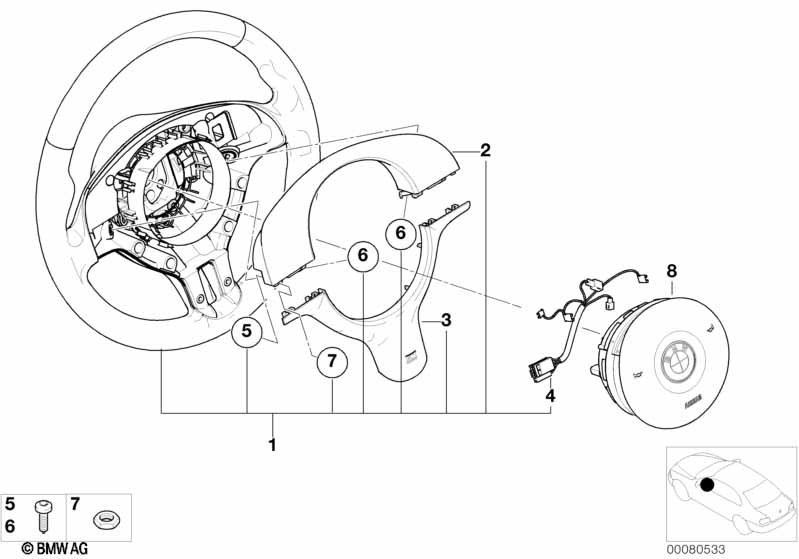

This M sports strng whl,leather,airbag-smart technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | M sports steer.-wheel, airbag, leather | SCHWARZ/SCHWARZ | 1 | 03/2001 | 32342282021 | $440.95 | Shop at ECS Tuning | |||
| 02 | Cover cap, sports steering wheel | 1 | 03/2001 | 61318383366 | $176.32 | +core | Shop at ECS Tuning | |||
| 03 | M cover | SCHWARZ | 1 | 03/2001 | 32347833355 | $141.43 | Shop at ECS Tuning | |||
| 04 | Connecting line, airbag / slip ring | 1 | 03/2001 | 32301097246 | $28.75 | Shop at ECS Tuning | ||||
| 05 | Screw Torx drive | M4X12 | 6 | 03/2001 | 07129904977 | $0.50 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M4X15 | 2 | 03/2001 | 32301096839 | $0.45 | Shop at ECS Tuning | |||
| 07 | Plug-in nut | M4 | 6 | 03/2001 | 32301096840 | $2.91 | Shop at ECS Tuning | |||
| 08 | Hub cap, airbag | 1 | 01/2002 | 08/2006 | 32306880599 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i M sports strng whl,leather,airbag-smart?
- This technical diagram illustrates the M sports strng whl,leather,airbag-smart within the Steering group for the 3 Series E46 318i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the M sports steer.-wheel, airbag, leather (Part #32342282021).
- Which models use the hardware listed in this M sports strng whl,leather,airbag-smart?
- The hardware and components featured in the M sports strng whl,leather,airbag-smart are specific to the 3 Series E46 318i produced during 2003. These technical specifications ensure that parts like the M sports steer.-wheel, airbag, leather (32342282021) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the M sports strng whl,leather,airbag-smart assembly?
- Each item in the M sports strng whl,leather,airbag-smart corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the M sports steer.-wheel, airbag, leather by locating its position on the schematic, which then links to the official BMW part number 32342282021 for the Steering section.
