M sports strng whl,airbag, sequ. transm. for BMW 3 Series E46 M3 (2006)

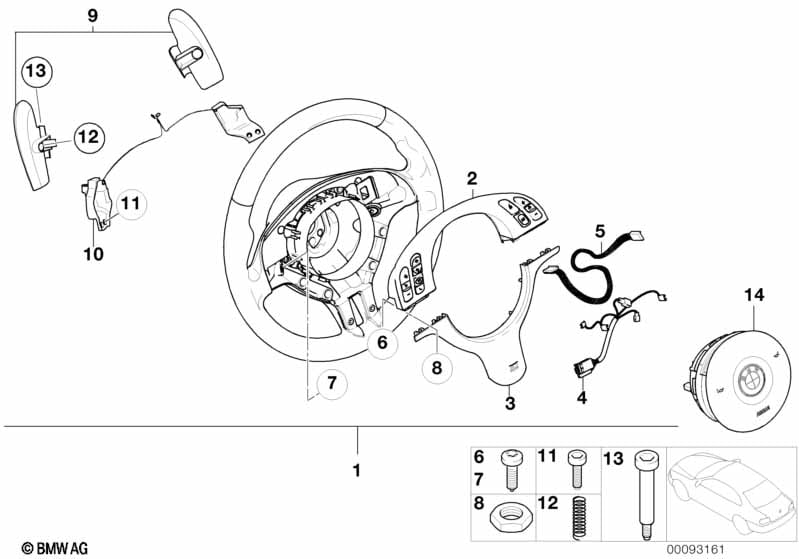

This M sports strng whl,airbag, sequ. transm. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sequential M transmission Drivelogic |
S793A=Yes |
||||||||
| 01 | M sports strng whl,leath.f sequ.transm. | SCHW./TITAN-SH. | 1 | 32342282222 | $947.69 | Shop at ECS Tuning | ||||
| 02 | Switch, multifunct. steering wheel | 1 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | ||||
| 03 | M cover | TITAN-SHADOW | 1 | 32347833354 | $139.31 | Shop at ECS Tuning | ||||
| 04 | Connecting line, airbag / slip ring | 1 | 32301097246 | $28.75 | Shop at ECS Tuning | |||||
| 05 | connecting line, steering wheel | 1 | 61318386947 | $30.43 | Shop at ECS Tuning | |||||
| 06 | Screw Torx drive | M4X12 | 6 | 07129904977 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M4X15 | 2 | 32301096839 | $0.45 | Shop at ECS Tuning | ||||
| 09 | Set of rocker switches, small | TITAN-SHADOW | 1 | 32347891003 | $155.50 | Shop at ECS Tuning | ||||
| 09 | Set of rocker switches, large | TITAN-SHADOW | 1 | 32347891004 | $194.83 | Shop at ECS Tuning | ||||
| 10 | Kit shift paddles M handlebar | 1 | 32347833040 | $158.73 | Shop at ECS Tuning | |||||
| 11 | Inner hex bolt | M3X10-8.8-A3B | 4 | 32342282373 | $2.25 | Shop at ECS Tuning | ||||
| 12 | Compression spring | 2 | 32342282377 | $6.73 | Shop at ECS Tuning | |||||
| 13 | Screw | 2 | 32342282374 | $7.44 | Shop at ECS Tuning | |||||
| 14 | Hub cap, airbag | 1 | 01/2002 | 08/2006 | 32306880599 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
