Steering wheel Airbag-Smart multifunct. for BMW 5 Series E39 525i (2003)

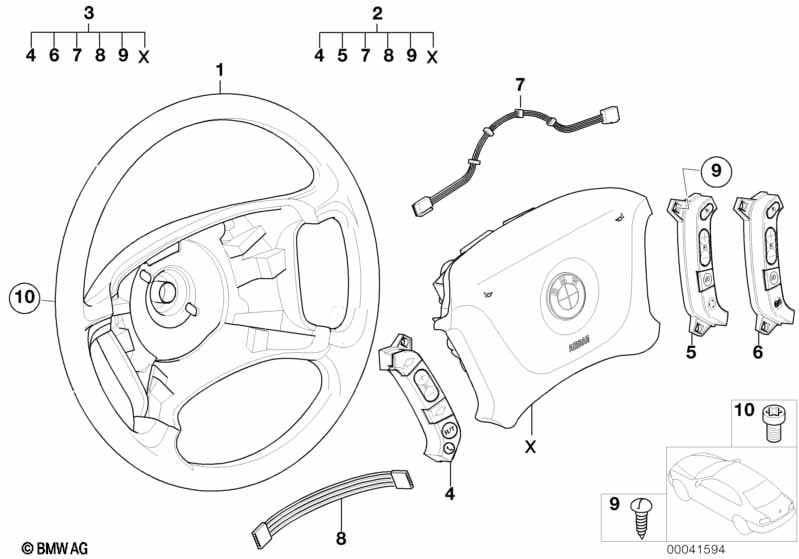

This Steering wheel Airbag-Smart multifunct. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Slip ring, see HG 61, integrated Support f steering column switch Parts marked with an X are not available as single part For vehicles produced from 09/01/2001 |
|||||||||
| 01 | Leather steering wheel | D=385MM | 1 | 09/2001 | 32346753738 | $550.00 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 01 | Leather steering wheel | D=385MM | 1 | 09/2001 | 32346753739 | $664.00 | Shop at ECS Tuning | |||
| 02 | Hub cap, airbag | 1 | 09/2001 | 32346753743 | $929.47 | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 03 | Hub cap, airbag | 1 | 09/2001 | 32346753745 | $929.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Radio/telephone switch | 1 | 09/2001 | 61316903396 | $120.27 | ENDED | Shop at ECS Tuning | |||
| 05 | Cruise control/air flow switch | 1 | 09/2001 | 61316922854 | $120.27 | Shop at ECS Tuning | ||||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 06 | Cruise control switch/steer.wheel heater | 1 | 09/2001 | 61316922855 | $120.27 | Shop at ECS Tuning | ||||
| 07 | Adapter wire f steering wheel switch | 1 | 09/2001 | 61318380478 | $17.92 | Shop at ECS Tuning | ||||
| 08 | Adapter wire f airbag module | 1 | 09/2001 | 61318373748 | $19.80 | Shop at ECS Tuning | ||||
| 09 | Fillister head screw | M4X8 | 4 | 09/2001 | 07119906407 | $1.64 | Shop at ECS Tuning | |||
| 10 | Torx screw | M6X15 8.8 T30 | 2 | 09/2001 | 32341097110 | $1.41 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
