Sports strng whl,airbag, sequ. transm. for BMW 3 Series E46 325i (2004)

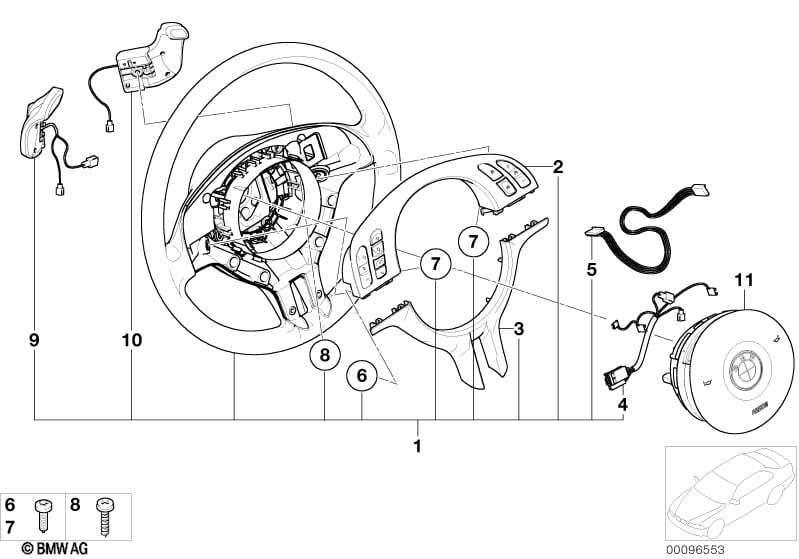

This Sports strng whl,airbag, sequ. transm. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to sequential gearbox Attention! Cover panels for wooden and aluminium sports steering wheels do not fit on sports steering wheels with plastic covers and vice versa. In this case, the corresponding complete sports steering wheel must be ordered. For vehicles with Interior trim finishers, aluminium or Interior trim finishers or Fine wood trim or Fine wood trim or Fine wood trim poplar grain or Lifestyle Edition or Young-Line or Interior moldings Alu Silver Cube |
S426A=Yes S434A=Yes S435A=Yes S438A=Yes S4ACA=Yes S722A=Yes S753A=Yes S770A=Yes |
||||||||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 01 | Sports strng whl,leath.f sequ.transm. | SCHWARZ / BIRKE | 1 | 11/2001 | 32346760666 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 01 | Sports strng whl,leath.f sequ.transm. | SCHWARZ/MYRTHE | 1 | 11/2001 | 32346760667 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 01 | Sports strng whl,leath.f sequ.transm. | SCHW./ALUMINIUM | 1 | 11/2001 | 32346760663 | $736.56 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Interior surface aluminium or Interior moldings Alu Silver Cube or Interior moldings Alu Black Cube |
S434A=Yes S770A=Yes S772A=Yes |
|||||||||
| 01 | Sports strng whl,leath.f sequ.transm. | SCHWARZ/SCHWARZ | 1 | 11/2001 | 32346760664 | $546.00 | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite or Fabric Jacquard/gray or Leather, "Chameleon"/kiesel-grau or Leather, "Chameleon"/black-gray or Fabric/leather "Scritto"/mystic-blau or Fabric/leather "Scritto"/black-grau |
H9AT=Yes H9TT=Yes V3KA=Yes V3TM=Yes V8MF=Yes V8TM=Yes |
|||||||||
| 01 | Sports strng whl,leath.f sequ.transm. | SCHW./MOONGREY | 1 | 11/2001 | 32346762075 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/traum-rot" or Cloth/leather "Maglia"/hell-beige 2 or Cloth/leather "Bianco-Nero"/anthracite/w or Vinyl light beige 2 or Imitation leather/black or Leather Montana/basic equip/hell-beige 2 or Leather Montana/basic equip/mahagoni or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/grau |
E4AT=Yes E4TL=Yes E9HC=Yes H7BC=Yes K4HC=Yes K4SW=Yes N6HC=Yes N6NG=Yes N6SW=Yes N6TT=Yes |
|||||||||
| 01 | Sports strng whl,leath.f sequ.transm. | SCHW./TITAN II | 1 | 11/2001 | 32346760665 | ENDED | Shop at ECS Tuning | |||
| 02 | Switch, multifunct. steering wheel | 1 | 11/2001 | 61316949754 | $201.78 | +core | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 03 | Cover | HOLZ BIRKE | 1 | 11/2001 | 32306760155 | $367.28 | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 03 | Cover | HOLZ MYRTE | 1 | 11/2001 | 32306760154 | $367.28 | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers, aluminium |
S426A=Yes |
|||||||||
| 03 | Cover | ALUMINIUM | 1 | 11/2001 | 32306756941 | Shop at ECS Tuning | ||||
| For vehicles with Interior surface aluminium or Interior moldings Alu Silver Cube or Interior moldings Alu Black Cube |
S434A=Yes S770A=Yes S772A=Yes |
|||||||||
| 03 | Cover | SOFTLACK-SCHW. | 1 | 11/2001 | 32306756514 | $131.40 | Shop at ECS Tuning | |||
| For vehicles with Fabric Jacquard/anthracite or Fabric Jacquard/gray or Leather, "Chameleon"/kiesel-grau or Leather, "Chameleon"/black-gray or Fabric/leather "Scritto"/mystic-blau or Fabric/leather "Scritto"/black-grau |
H9AT=Yes H9TT=Yes V3KA=Yes V3TM=Yes V8MF=Yes V8TM=Yes |
|||||||||
| 03 | Cover | MOONGREY | 1 | 11/2001 | 32306762076 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Gran Turismo"/anthracite or Fabric/leather "Gran Turismo/traum-rot" or Cloth/leather "Maglia"/hell-beige 2 or Cloth/leather "Bianco-Nero"/anthracite/w or Vinyl light beige 2 or Imitation leather/black or Leather Montana/basic equip/hell-beige 2 or Leather Montana/basic equip/mahagoni or Leather Montana/basic equip/schwarz or Leather Montana/basic equip/grau |
E4AT=Yes E4TL=Yes E9HC=Yes H7BC=Yes K4HC=Yes K4SW=Yes N6HC=Yes N6NG=Yes N6SW=Yes N6TT=Yes |
|||||||||
| 03 | Cover | TITAN II | 1 | 11/2001 | 32306756529 | $100.25 | Shop at ECS Tuning | |||
| 04 | Connecting line, airbag / slip ring | 1 | 11/2001 | 32301097246 | $28.75 | Shop at ECS Tuning | ||||
| 05 | connecting line, steering wheel | 1 | 11/2001 | 61318386947 | $30.43 | Shop at ECS Tuning | ||||
| 06 | screw for plastic | 4X14MM | 6 | 11/2001 | 32306756573 | $0.70 | Shop at ECS Tuning | |||
| 07 | Screw Torx drive | M4X12 | 2 | 11/2001 | 07129904977 | $0.50 | Shop at ECS Tuning | |||
| 08 | Oval head screw | M5X22MM | 2 | 11/2001 | 32346759915 | $2.41 | Shop at ECS Tuning | |||
| 09 | Rocker-type shift lever, left | 1 | 11/2001 | 61316913803 | $293.39 | +core | Shop at ECS Tuning | |||
| 10 | Rocker-type shift lever, right | 1 | 11/2001 | 61316913804 | $293.39 | +core | Shop at ECS Tuning | |||
| 11 | Hub cap, airbag | 1 | 01/2002 | 05/2006 | 32306880599 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
