Power steering pump/Dynamic Drive for BMW 7 Series E66 760Li (2008)

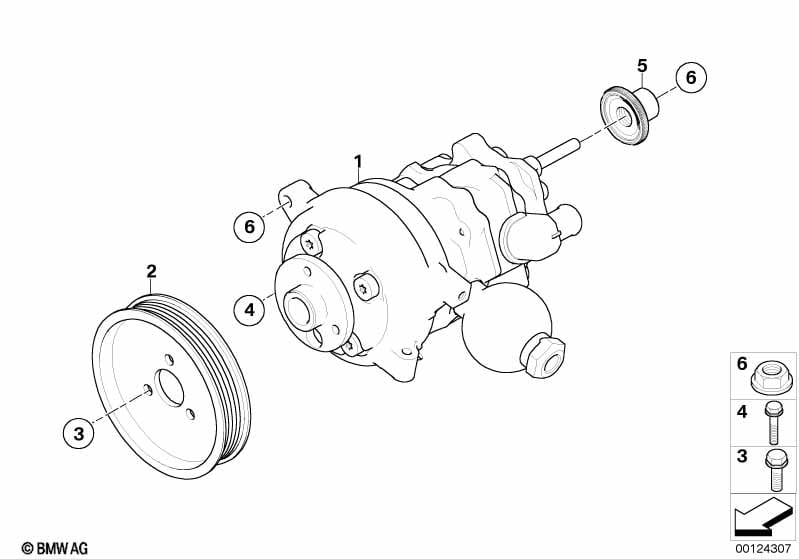

This Power steering pump/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tandem pump | LUK | 1 | 32416760071 | $1528.32 | +core | Shop at ECS Tuning | |||
| 02 | Pulley | D=108.5MM | 1 | 32427529221 | $105.93 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X35-U1 | 1 | 07119905533 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Knurled bolt | M16X1.5 | 1 | 32427508583 | $3.78 | Shop at ECS Tuning | ||||
| 06 | Hex nut | AM8-8-ZNS3 | 2 | 07129904011 | $0.62 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
