Power steering/oil pipe/dynamic drive for BMW 7 Series E66 760Li (2008)

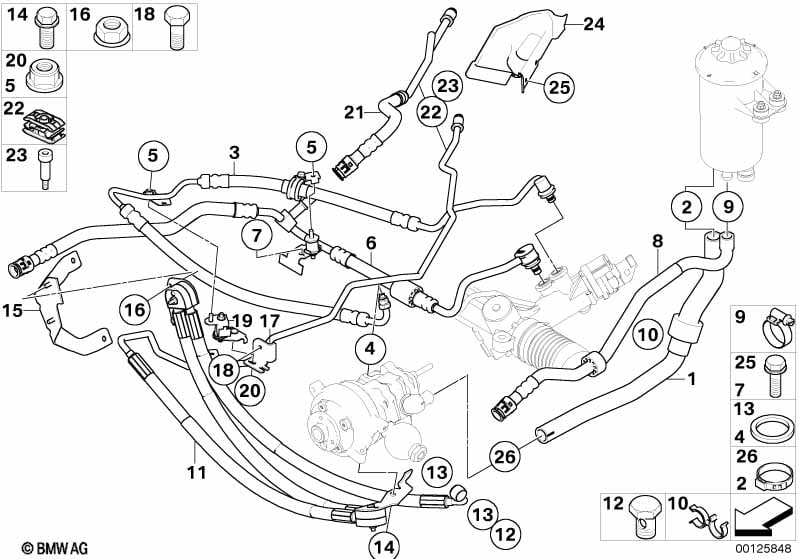

This Power steering/oil pipe/dynamic drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 760Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction pipe | 1 | 32416760487 | $49.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Expansion hose | 1 | 32416781756 | $292.18 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-ZNS3 | 2 | 07/2007 | 07119904023 | $0.36 | ENDED | Shop at ECS Tuning | ||
| 06 | Return pipe | 1 | 32416781769 | $162.10 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X20-U1-ZNS3 | 1 | 07119903849 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 08 | radiator return line | 1 | 32416760490 | $61.87 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hose clamp | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | D=18/D=25 | 1 | 12511309471 | $1.50 | Shop at ECS Tuning | ||||
| 11 | Expansion hose Dynamic Drive | 1 | 32416783579 | $419.10 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 13 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X20-U1-ZNS3 | 1 | 03/2007 | 07119905295 | $0.71 | ENDED | Shop at ECS Tuning | ||
| 15 | Bracket for exp. hose Dynamic Drive | 1 | 32416760493 | $12.70 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 17 | Bracket f expansion hose | 1 | 32416756426 | $4.83 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 19 | Holder with rubber mounting | 1 | 32416779940 | $42.73 | ENDED | Shop at ECS Tuning | ||||
| 20 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M6-ZNS3 | 1 | 07119904023 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 21 | Return pipe Dynamic Drive | 1 | 32416760492 | $114.46 | ENDED | Shop at ECS Tuning | ||||
| 22 | Pipe support | 2 | 32416756132 | $12.23 | Shop at ECS Tuning | |||||
| 23 | Collar screw | M6 | 2 | 32416781748 | $1.32 | Shop at ECS Tuning | ||||
| 24 | Heat resistant plate | 1 | 31146754138 | $15.63 | ENDED | Shop at ECS Tuning | ||||
| 25 | Hex bolt with washer | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 26 | Hose clamp | D= 25MM | 1 | 32416763470 | $1.27 | Shop at ECS Tuning |
