Hydro steering box for BMW 5 Series E60 530i (2007)

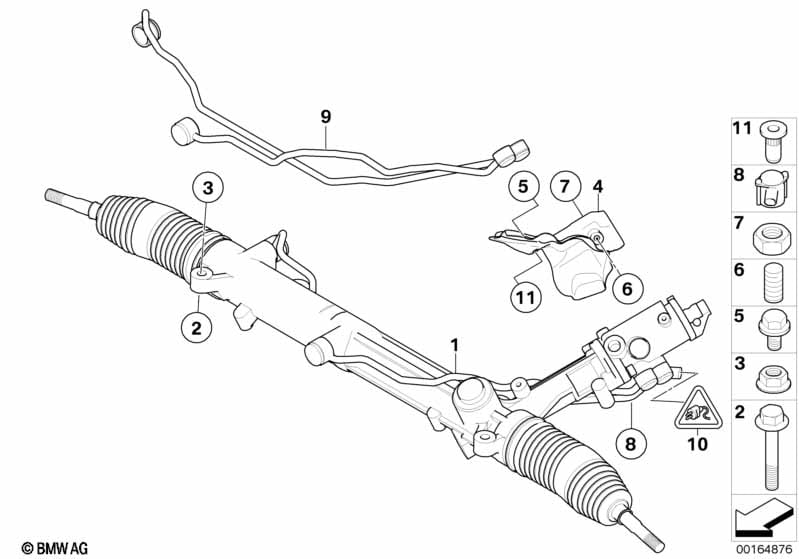

This Hydro steering box technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active steering |
S217A=No |
||||||||
| 01 | RP Hydraulic steering gear Servotronic | 1 | 07/2005 | 32102475180 | Shop at ECS Tuning | |||||
| Does not apply to Brazil, Argentina, India, China |
||||||||||
| 01 | RP REMAN hydraulic steering gear, SVT | 1 | 07/2005 | 32106795340 | ENDED | Shop at ECS Tuning | ||||
| 02 | ASA-Bolt | M10X65-Z1-10.9 | 4 | 32136769390 | $2.08 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10-10-ZNS3 | 3 | 07119905032 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Torque converter servotronic | ZF | 1 | 32106788658 | Shop at ECS Tuning | |||||
| 09 | Set pipe | ZF | 1 | 32106768757 | $120.72 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Exch. hydro steering gear Servotronic | X | 32106773767 | $1859.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. hydro steering gear | X | 32106773803 | $1859.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. hydro steering gear Servotronic | X | 32106775423 | $1859.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. hydro steering gear | X | 32106777483 | $1859.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. hydro steering gear | X | 32106777999 | $1859.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Exch. hydro steering gear | X | 32106778003 | $1708.10 | ENDED | Shop at ECS Tuning | ||||
| 10 | Universal pin terminal uncoded | 2 POL. | 1 | 61138366275 | $6.90 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin contact MQS ELA with cable | 0,75 QMM | 2 | 61130006666 | $2.15 | Shop at ECS Tuning | ||||
