Hydro steering box-Active steering (AFS) for BMW 5 Series E60 LCI 525d (2008)

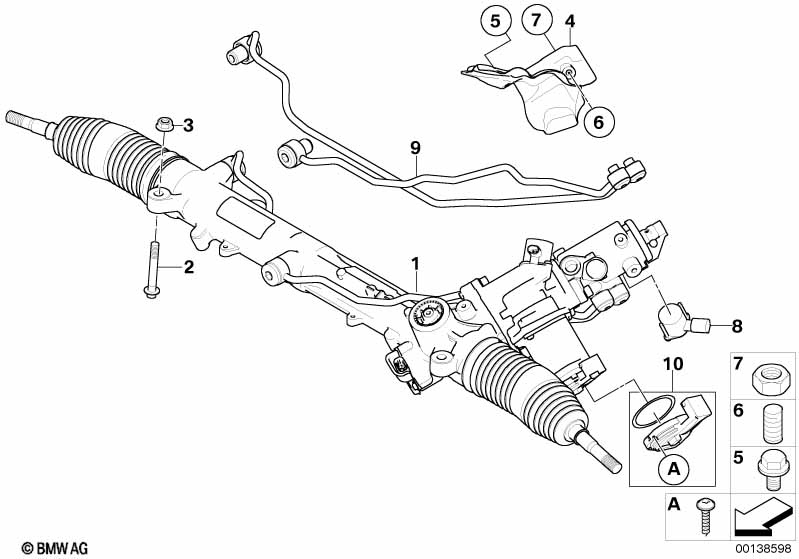

This Hydro steering box-Active steering (AFS) technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active steering |
S217A=Yes |
||||||||
| Does not apply to Brazil, Argentina, India, China |
||||||||||
| 01 | RP Hydraulic steering gear active steer. | 1 | 32106794414 | ENDED | Shop at ECS Tuning | |||||
| 02 | ASA-Bolt | M10X65-Z1-10.9 | 4 | 32136769390 | $2.08 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M10-10-ZNS3 | 2 | 07119905032 | $0.71 | Shop at ECS Tuning | ||||
| 04 | Steering box heat resistant plate | 1 | 32416766763 | ENDED | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNS3 | 1 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Torque converter servotronic | ZF | 1 | 32106788212 | Shop at ECS Tuning | |||||
| 09 | Set of pipes, active steering | M12X1,5 | 1 | 32106777183 | Shop at ECS Tuning | |||||
