Power steering pump/Dynamic Drive for BMW 5 Series E60 LCI 525d (2008)

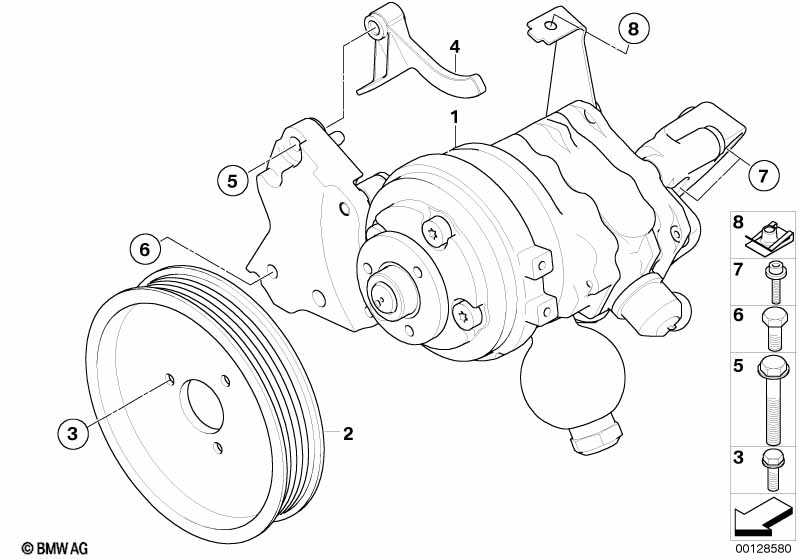

This Power steering pump/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering and Dynamic Drive |
S217A=No S229A=Yes |
|||||||||
| 01 | Tandem pump | LFR-440 LUK | 1 | 32416781266 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Pulley | D= 141MM | 1 | 32427795298 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 32427790907 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X80-U1-8.8 | 1 | 04/2007 | 07119904845 | $1.98 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M8X50-U1-8.8 | 1 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 07 | Fillister head with washer | M8X30-U1-ZNS3 | 2 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Fillister head with washer | M8X35-U1-8.8 | 2 | 07/2007 | 07119906249 | $0.73 | Shop at ECS Tuning | |||
| 08 | C-clip nut | M6-ZNS3 | 1 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
