Oil reservoir/components/Dynamic Drive for BMW 5 Series E60 525i (2005)

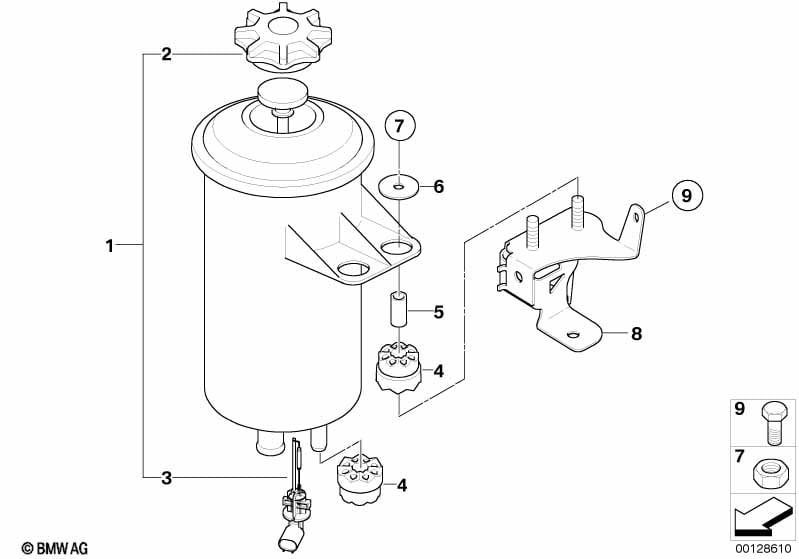

This Oil reservoir/components/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | Oil carrier | 1 | 32416782538 | $74.98 | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 32411092649 | $16.03 | Shop at ECS Tuning | |||||
| 03 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| discontinued | ||||||||||
| 06 | Washer | 6,4X25X1,5 | 2 | 04/2008 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 07 | Hex nut | M6-8-ZNS3 | 2 | 04/2008 | 07119905128 | $0.44 | Shop at ECS Tuning | |||
| 07 | Hex nut with plate | M6 | 2 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
| 08 | Bracket, oil carrier | 1 | 32416760249 | $19.76 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M5X14 | 2 | 07119904337 | $0.38 | Shop at ECS Tuning | ||||
