Electron.steer. column adj./add-on parts for BMW 5 Series E60 525i (2005)

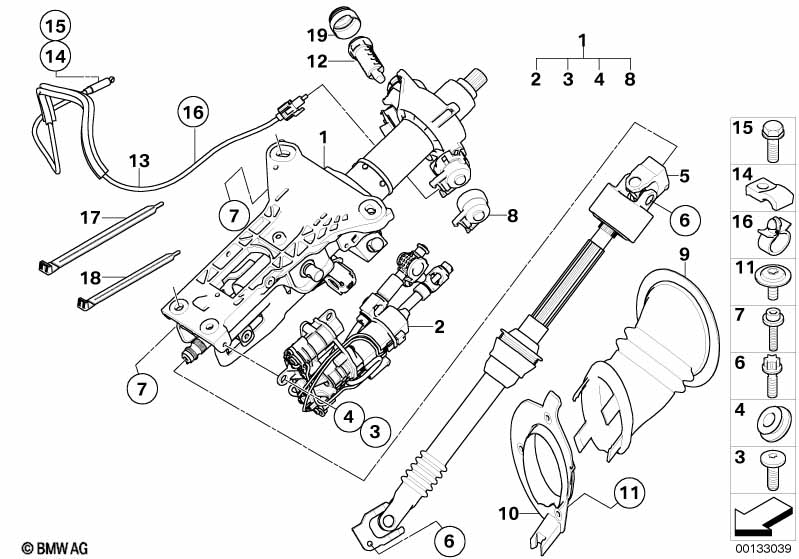

This Electron.steer. column adj./add-on parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel column adjustment,electr. | 1 | 09/2004 | 09/2005 | 32306770712 | $1679.39 | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 01 | Steering column,electr.adjust. Interlock | 1 | 09/2004 | 09/2005 | 32306770713 | $1628.50 | Shop at ECS Tuning | |||
| 02 | Drive,electronic steering column adjustm | 1 | 09/2004 | 09/2005 | 67646956696 | $374.97 | Shop at ECS Tuning | |||
| 03 | Mounting screw | 3 | 09/2005 | 32306765972 | $4.05 | Shop at ECS Tuning | ||||
| 04 | Bearing, plastic | 3 | 09/2005 | 32306760423 | $8.00 | Shop at ECS Tuning | ||||
| 05 | Lower joint assy | 1 | 09/2005 | 32306783240 | ENDED | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M8X33 | 2 | 09/2005 | 32306778609 | $0.67 | Shop at ECS Tuning | |||
| 07 | Fillister head with washer | 4 | 09/2005 | 32306766052 | $0.75 | Shop at ECS Tuning | ||||
| 08 | Positioning unit steering lock | 1 | 09/2005 | 32306765857 | $59.89 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 08 | Positioning unit steering lock | 1 | 09/2005 | 32306765858 | $239.07 | Shop at ECS Tuning | ||||
| 09 | Steering shaft sleeve | 1 | 09/2005 | 32306767789 | Shop at ECS Tuning | |||||
| 10 | Steering-column bracket | 1 | 09/2005 | 51717060310 | Shop at ECS Tuning | |||||
| 11 | Torx bolt | ISA M6X18 SW | 3 | 09/2005 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 12 | Lock (with key code) | 1 | 09/2005 | 32306763310 | $84.27 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 13 | Interlock cable | 1 | 09/2005 | 32306763520 | $35.57 | Shop at ECS Tuning | ||||
| 14 | Interlock cable bracket | 1 | 09/2005 | 32311160323 | $2.70 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M6 | 1 | 09/2005 | 32311160657 | $0.83 | Shop at ECS Tuning | |||
| 16 | Cable holder | D=16,8MM | 1 | 09/2005 | 12521276147 | $0.58 | Shop at ECS Tuning | |||
| 17 | Cable tie | L=292MM/B=4,8MM | 1 | 09/2005 | 61131377134 | $0.77 | Shop at ECS Tuning | |||
| 18 | Cable tie | L=200MM/B=3,6MM | 1 | 09/2005 | 61131367599 | $0.43 | Shop at ECS Tuning | |||
| 19 | Covering cap lock cylinder | 1 | 09/2005 | 32306759273 | $20.37 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
