Hydro steering-oil pipes for BMW 5 Series E60 525i (2005)

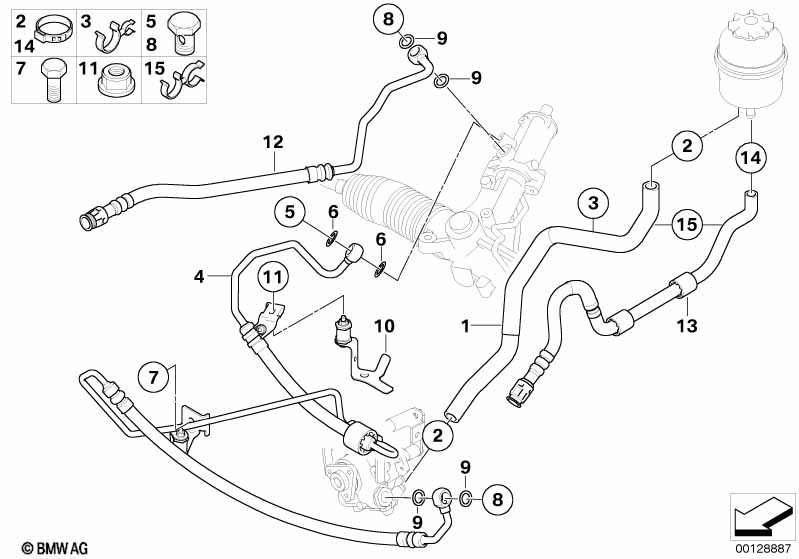

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active steering and Dynamic Drive |
S217A=No S229A=No |
||||||||
| 01 | Suction pipe | 1 | 32416761486 | $49.80 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Hose clamp | 1 | 11721391756 | $1.83 | ENDED | Shop at ECS Tuning | ||||
| 04 | Expansion hose | 1 | 32416766693 | ENDED | Shop at ECS Tuning | |||||
| Note Repair Manual | ||||||||||
| 05 | Banjo bolt with check valve | M14X1,5X27,4 | 1 | 10/2004 | 32416781261 | $10.02 | Shop at ECS Tuning | |||
| 06 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X18MM | 1 | 32416782036 | $0.48 | Shop at ECS Tuning | ||||
| 08 | Hollow bolt | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| 09 | Gasket ring | A16X20-CUSN | 4 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 10 | Bracket,expansion hose w rubber mounting | 1 | 32416781783 | Shop at ECS Tuning | ||||||
| 11 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07/2007 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 12 | Return pipe | 1 | 32416766660 | Shop at ECS Tuning | ||||||
| 13 | radiator return line | 1 | 32416772754 | $61.87 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
