Power steering pump/Active steering for BMW 5 Series E60 LCI 550i (2009)

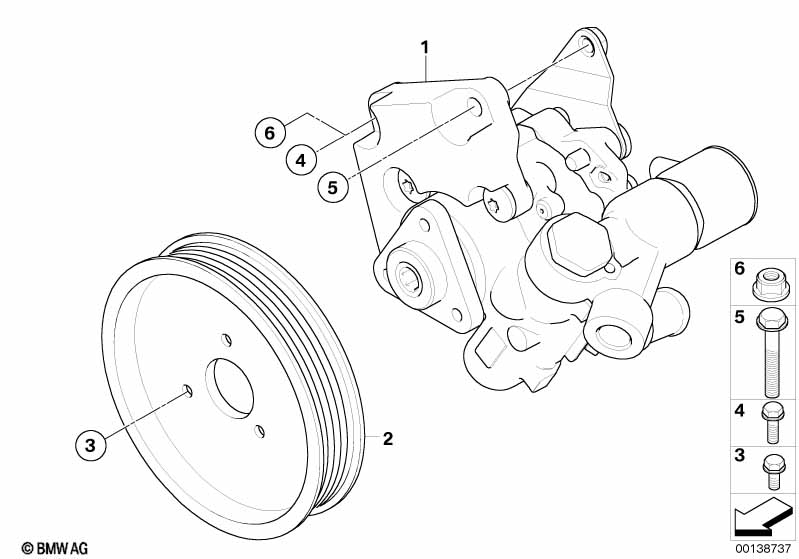

This Power steering pump/Active steering technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering and Dynamic Drive |
S217A=Yes S229A=No |
|||||||||
| 01 | Power steering pump | FP-6 ZF | 1 | 32416762159 | $1178.22 | Shop at ECS Tuning | ||||
| 02 | Pulley | D=108,5MM | 1 | 32427508865 | $20.03 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X85-U1-8.8 | 1 | 07119906141 | $1.89 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8-ZNS3 | 1 | 05/2004 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 LCI 550i Power steering pump/Active steering?
- This technical diagram illustrates the Power steering pump/Active steering within the Steering group for the 5 Series E60 LCI 550i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Power steering pump (Part #32416762159).
- Which models use the hardware listed in this Power steering pump/Active steering?
- The hardware and components featured in the Power steering pump/Active steering are specific to the 5 Series E60 LCI 550i produced during 2009. These technical specifications ensure that parts like the Power steering pump (32416762159) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering pump/Active steering assembly?
- Each item in the Power steering pump/Active steering corresponds to the numbered list below the illustration. For the 5 Series E60 LCI 550i, you can identify the Power steering pump by locating its position on the schematic, which then links to the official BMW part number 32416762159 for the Steering section.
