Power steering pump/Dynamic Drive for BMW 5 Series E60 550i (2007)

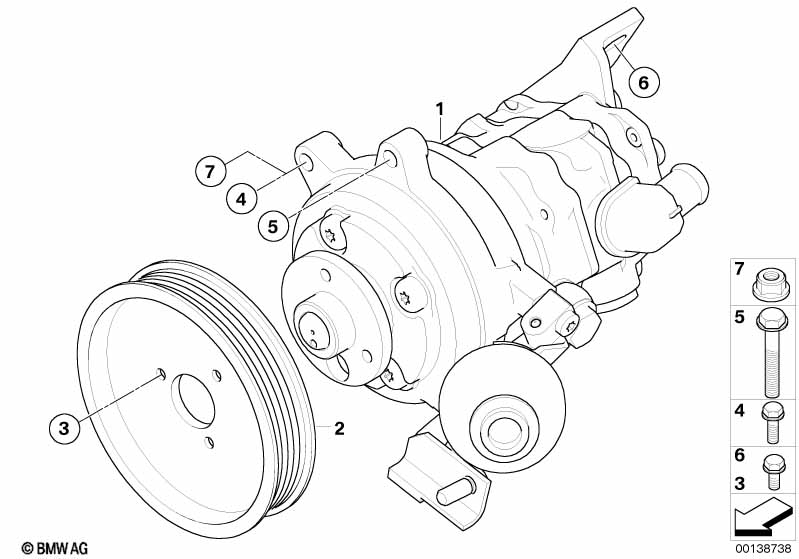

This Power steering pump/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering and Dynamic Drive |
S217A=No S229A=Yes |
|||||||||
| 01 | Tandem pump | LFR-440 LUK | 1 | 09/2003 | 32416767244 | $935.73 | +core | Shop at ECS Tuning | ||
| 02 | Pulley | D=108.5MM | 1 | 32421439232 | $185.16 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X115-U1-8.8 | 1 | 07119906142 | $1.95 | Shop at ECS Tuning | ||||
| 06 | Fillister-head screw | M8X25-U1-8.8 | 1 | 07119906143 | $1.64 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M8-ZNS3 | 1 | 05/2004 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
