Sport st.whl.airbag-smart /Multifunction for BMW 5 Series E60 525i (2007)

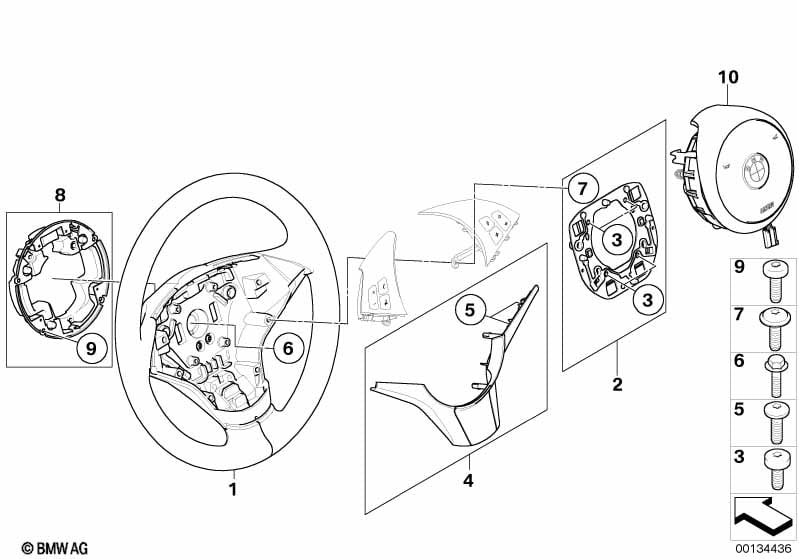

This Sport st.whl.airbag-smart /Multifunction technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports leather steering wheel |
S255A=Yes |
||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 09/2005 | 32346774458 | $444.95 | Shop at ECS Tuning | |||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 01 | Airbag sports steering wheel, leather | SCHWARZ | 1 | 09/2005 | 32346774459 | $559.00 | Shop at ECS Tuning | |||
| 02 | Mounting plate steering wheel with bolts | 1 | 09/2005 | 32346772990 | $22.99 | Shop at ECS Tuning | ||||
| 03 | Torx screw | M5X12,5MM | 4 | 32346766011 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Decorative clips with screw | TITAN CHROM | 1 | 32306794084 | $415.85 | Shop at ECS Tuning | ||||
| 05 | Torx screw | 4 | 32346763366 | $1.34 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M12 | 1 | 32311159951 | $3.42 | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | M4X12,5MM | 2 | 32346767106 | $0.80 | Shop at ECS Tuning | ||||
| 10 | Airbag module, driver's side | 1 | 09/2005 | 32346780456 | $893.32 | Shop at ECS Tuning | ||||
