Power steering pump for BMW 7 Series E67 745LiS (2004)

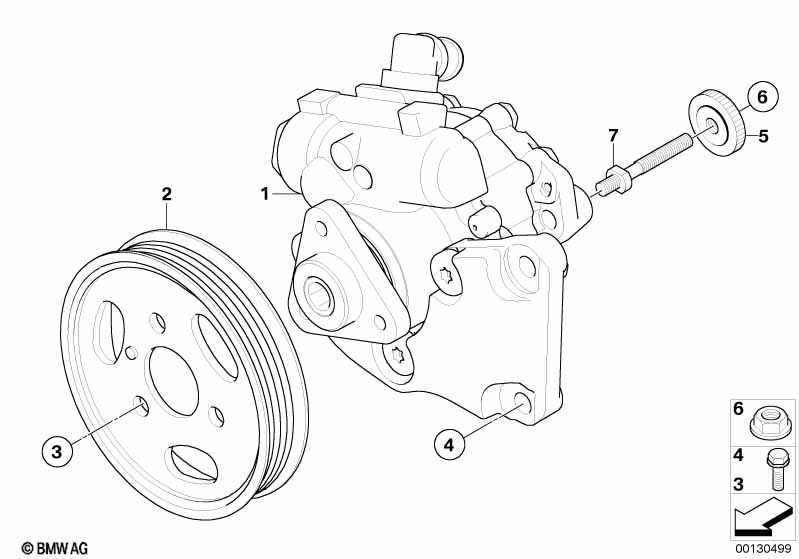

This Power steering pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 745LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Power steering pump | ZF FP-6 | 1 | 32416762935 | ENDED | Shop at ECS Tuning | ||||
| 02 | Pulley | 5K-108.5 | 1 | 32427511520 | +core | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X30-ZNNIV SI | 2 | 07119905532 | $1.25 | Shop at ECS Tuning | ||||
| 05 | Knurled head nut | M8 | 1 | 32421707578 | $2.56 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M8-ZNS3 | 1 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Hex nut | AM8-8-ZNS3 | 1 | 07129904011 | $0.62 | ENDED | Shop at ECS Tuning | |||
| 07 | Threaded bolt | 1 | 32427576090 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
