Power steering pump for BMW 7 Series E66 735Li (2004)

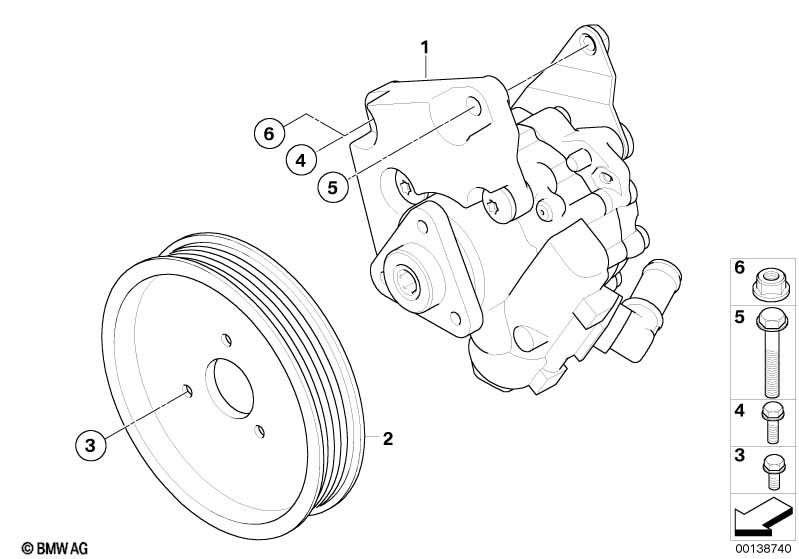

This Power steering pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 735Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Dynamic Drive |
S229A=No |
|||||||||
| 01 | Power steering pump | ZF FP-6 | 1 | 10/2003 | 32416763687 | ENDED | Shop at ECS Tuning | |||
| 02 | Pulley | D=108,5MM | 1 | 10/2003 | 32427508865 | $20.03 | Shop at ECS Tuning | |||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 10/2003 | 32427574840 | $0.62 | Shop at ECS Tuning | |||
| 05 | Hex bolt with washer | M8X85-U1-8.8 | 1 | 10/2003 | 07119906141 | $1.89 | Shop at ECS Tuning | |||
| 06 | Hex nut with plate | M8-ZNS3 | 1 | 05/2004 | 07129904862 | $1.12 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 735Li Power steering pump?
- This technical diagram illustrates the Power steering pump within the Steering group for the 7 Series E66 735Li produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Power steering pump (Part #32416763687).
- Which models use the hardware listed in this Power steering pump?
- The hardware and components featured in the Power steering pump are specific to the 7 Series E66 735Li produced during 2004. These technical specifications ensure that parts like the Power steering pump (32416763687) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering pump assembly?
- Each item in the Power steering pump corresponds to the numbered list below the illustration. For the 7 Series E66 735Li, you can identify the Power steering pump by locating its position on the schematic, which then links to the official BMW part number 32416763687 for the Steering section.
