Steering wheel airbag for BMW 1 Series E87 LCI 118d (2011)

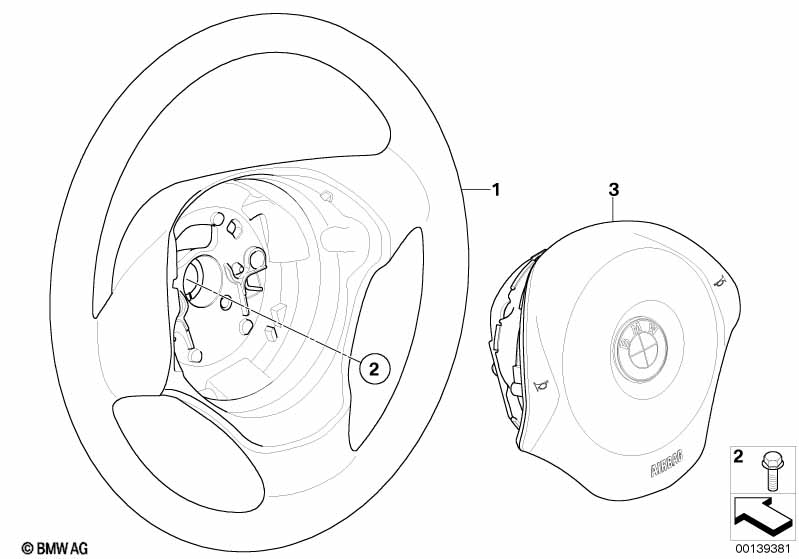

This Steering wheel airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M leather steering wheel |
S710A=No |
||||||||
| 01 | Steering wheel airbag | 1 | 32306763076 | Shop at ECS Tuning | ||||||
| 02 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 03 | Airbag module, driver's side | 1 | 02/2006 | 32306779828 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series E87 LCI 118d Steering wheel airbag?
- This technical diagram illustrates the Steering wheel airbag within the Steering group for the 1 Series E87 LCI 118d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Steering wheel airbag (Part #32306763076).
- Which models use the hardware listed in this Steering wheel airbag?
- The hardware and components featured in the Steering wheel airbag are specific to the 1 Series E87 LCI 118d produced during 2011. These technical specifications ensure that parts like the Steering wheel airbag (32306763076) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Steering wheel airbag assembly?
- Each item in the Steering wheel airbag corresponds to the numbered list below the illustration. For the 1 Series E87 LCI 118d, you can identify the Steering wheel airbag by locating its position on the schematic, which then links to the official BMW part number 32306763076 for the Steering section.
