Power steering pump/Active steering for BMW 5 Series E60 530i (2007)

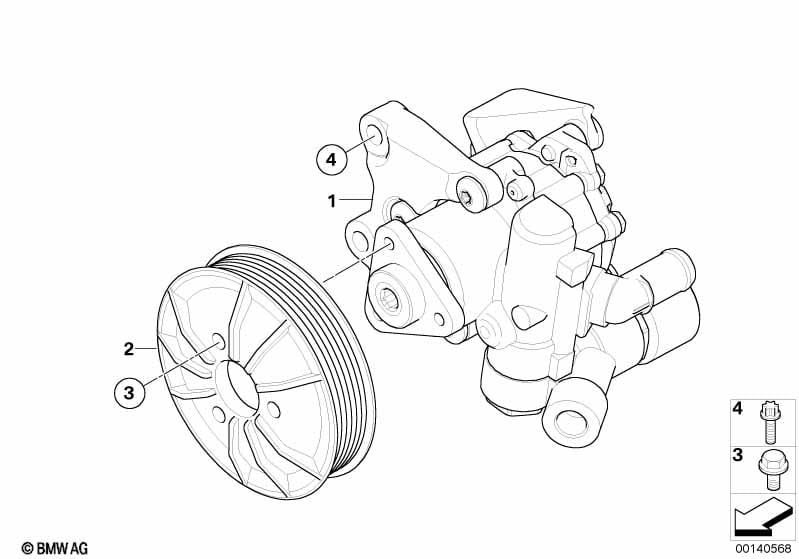

This Power steering pump/Active steering technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering and Dynamic Drive |
S217A=Yes S229A=No |
|||||||||
| 01 | Power steering pump | ZF FP6 | 1 | 32416769766 | $1178.22 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws power steering pump | 1 | 32420392609 | $7.65 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Pulley | D=116MM | 1 | 32427537862 | $43.10 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X18-Z1-ZNS3 | 3 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| For vehicles with Active steering and Dynamic Drive Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
S217A=Yes S229A=No |
|||||||||
| 04 | Set of alu. screws power steering pump | 1 | 32420392609 | $7.65 | Shop at ECS Tuning | |||||
