Power steering pump/Dynamic Drive for BMW 5 Series E61 525i (2007)

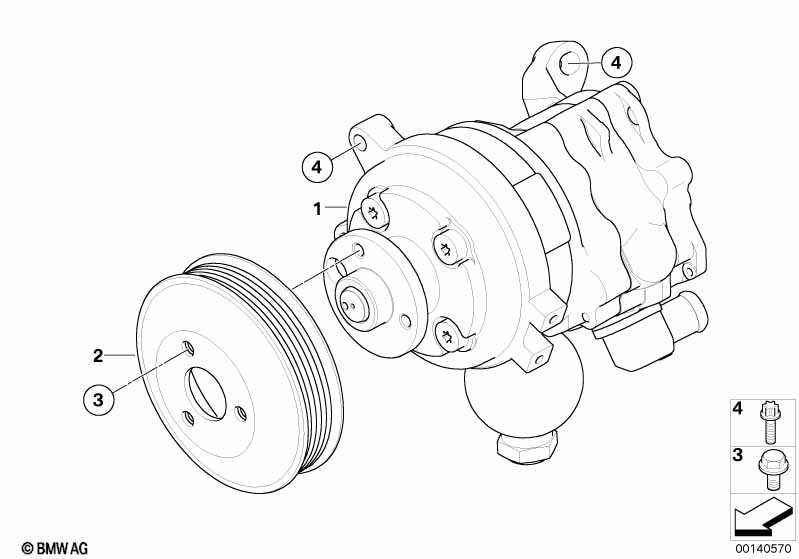

This Power steering pump/Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering and Dynamic Drive |
S217A=No S229A=Yes |
|||||||||
| 01 | Tandem pump | LFR440 LUK | 1 | 32416775012 | $1310.02 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of alu. screws power steering pump | 1 | 32420392609 | $7.65 | Shop at ECS Tuning | |||||
| Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
||||||||||
| 02 | Pulley | D=116MM | 1 | 32427516620 | $43.84 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M8X12 | 3 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with Active steering and Dynamic Drive Attention! Aluminum screws may only be used once. For additional information, refer to the repair manual! |
S217A=No S229A=Yes |
|||||||||
| 04 | Set of alu. screws power steering pump | 1 | 32420392609 | $7.65 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
