Steering column man.adjust./Mount. parts for BMW 5 Series E60 LCI 525xi (2009)

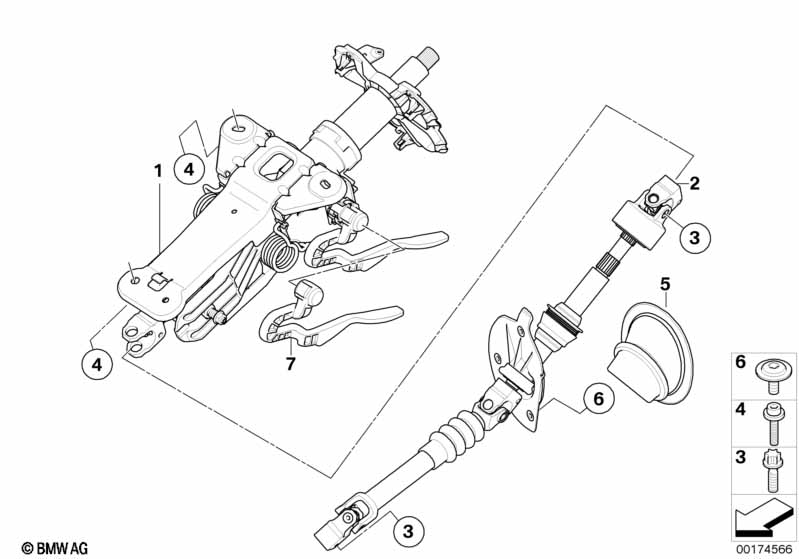

This Steering column man.adjust./Mount. parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| contains electr. steering column lock | ||||||||||
| 01 | Manually adjust. steering column | 1 | 09/2005 | 32306788849 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission without electric steering lock |
S205A=Yes |
|||||||||
| 01 | Manually adjust. steering column | 1 | 02/2009 | 32306791267 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lower joint assy | 1 | 09/2005 | 32306786703 | $367.52 | Shop at ECS Tuning | ||||
| 03 | Torx bolt | M8X33 | 2 | 09/2005 | 32306778609 | $0.67 | Shop at ECS Tuning | |||
| 04 | Fillister head with washer | 4 | 09/2005 | 32306766052 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Steering shaft sleeve | 1 | 09/2005 | 32306768006 | $46.94 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | ISA M6X18 SW | 3 | 09/2005 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 07 | Adjust-lever | 1 | 09/2005 | 32306768494 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
