Oil reservoir/components/Active steering for BMW 3 Series E91 LCI 335i (2012)

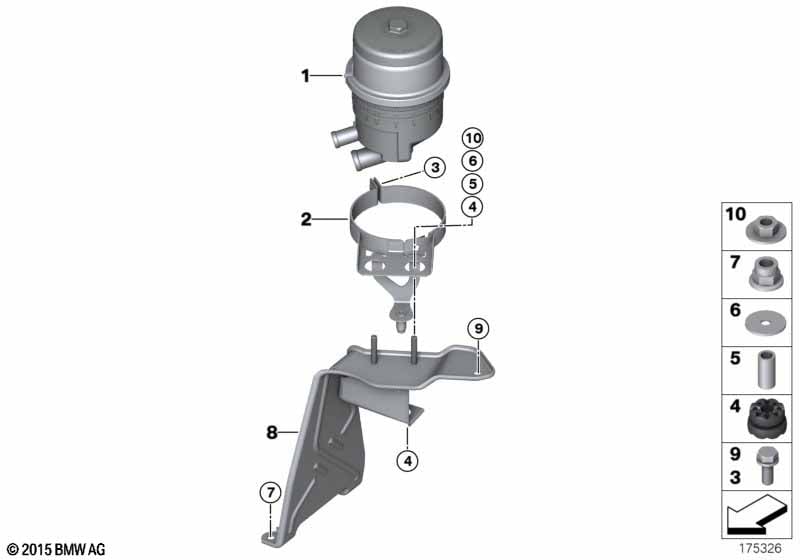

This Oil reservoir/components/Active steering technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 01 | Oil carrier | 1 | 32416767161 | $33.48 | Shop at ECS Tuning | |||||
| 02 | Bracket, oil carrier, top | 1 | 32416768095 | $24.44 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 1 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Rubber Mounting | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNS3 | 2 | 07119905128 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Bracket, oil carrier | 1 | 32416771807 | $24.44 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber Mounting | 1 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 09 | Hex bolt with washer | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 10 | Hex nut with plate | M6 | 2 | 04/2008 | 07147155614 | $0.91 | Shop at ECS Tuning | |||
