Power steering/oil pipe/Active steering for BMW 3 Series E90 LCI 335i (2010)

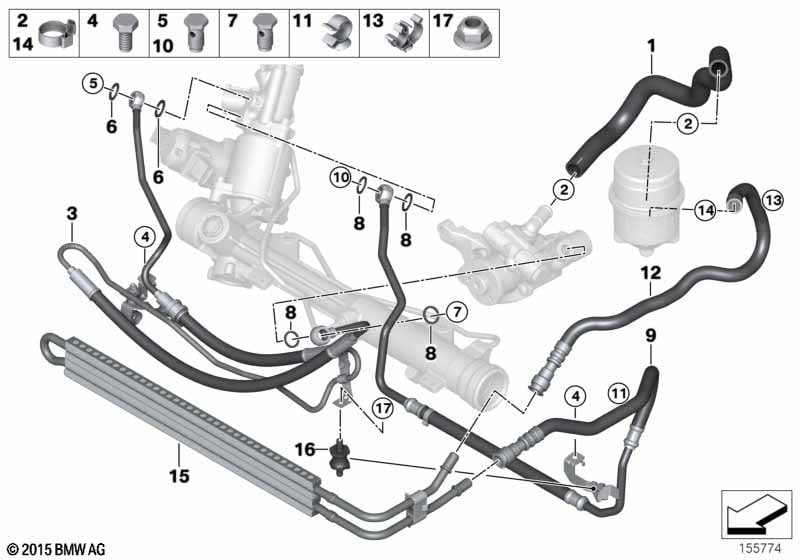

This Power steering/oil pipe/Active steering technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Active steering |
S217A=Yes |
||||||||
| 01 | Suction pipe active steering | 1 | 32416850100 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | D= 25MM | 2 | 32416763470 | $1.27 | Shop at ECS Tuning | ||||
| 03 | Expansion hose, active steering | 1 | 12/2007 | 32416784394 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Banjo bolt with check valve | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A14X20-CUSN | 2 | 32411093596 | $0.31 | Shop at ECS Tuning | ||||
| 07 | Hollow bolt with extension | M16X28 | 1 | 32416781666 | $2.47 | Shop at ECS Tuning | ||||
| 09 | Return pipe, active steering | 1 | 12/2007 | 32416784395 | Shop at ECS Tuning | |||||
| 10 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 11 | Tubing support | D=17/D=19 | 1 | 13537792950 | $1.08 | Shop at ECS Tuning | ||||
| 12 | Radiator return line for active steering | 1 | 32416781457 | $91.56 | Shop at ECS Tuning | |||||
| 13 | Hose clamp, double | 1 | 64219119951 | $0.78 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 15 | Power steering loop | 1 | 17117540810 | $87.55 | Shop at ECS Tuning | |||||
| 16 | Rubber Mounting | H=17 | 3 | 32416769256 | Shop at ECS Tuning | |||||
| 17 | Hex nut with plate | M6-8-ZNNIV SI | 6 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
