Oil carrier / Single parts for BMW X6 E71 30dX

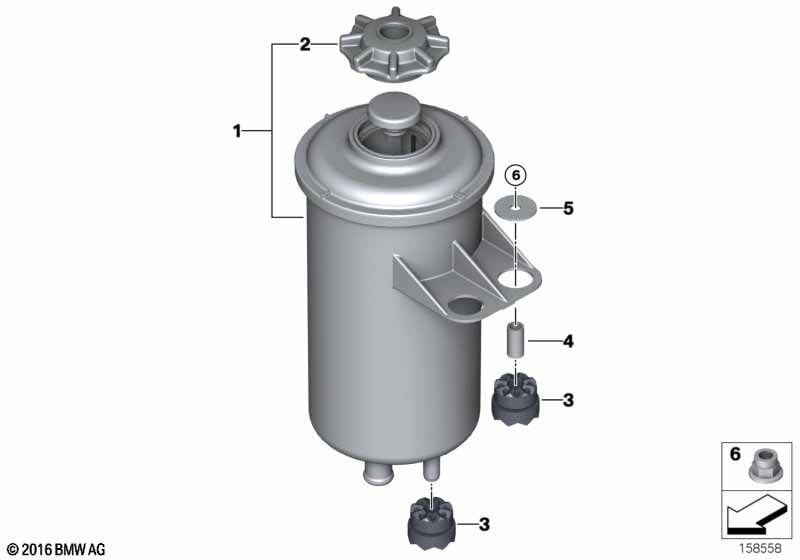

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=No |
||||||||
| 01 | Oil carrier | 1 | 32416782538 | $74.98 | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 32411092649 | $16.03 | Shop at ECS Tuning | |||||
| 03 | Rubber Mounting | 3 | 32416772178 | $2.93 | Shop at ECS Tuning | |||||
| 04 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| discontinued | ||||||||||
| 05 | Washer | 6,4X25X1,5 | 2 | 05/2008 | 07146977329 | $0.64 | Shop at ECS Tuning | |||
| 06 | Hex nut | M6-8-ZNS3 | 2 | 05/2008 | 07119905128 | $0.44 | Shop at ECS Tuning | |||
| 06 | Hex nut with plate | M6 | 2 | 07147155614 | $0.91 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW X6 E71 30dX Oil carrier / Single parts?
- This technical diagram illustrates the Oil carrier / Single parts within the Steering group for the X6 E71 30dX. It provides a detailed exploded view of the components, identifying key parts such as the Oil carrier (Part #32416782538).
- Which models use the hardware listed in this Oil carrier / Single parts?
- The hardware and components featured in the Oil carrier / Single parts are specific to the X6 E71 30dX. These technical specifications ensure that parts like the Oil carrier (32416782538) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil carrier / Single parts assembly?
- Each item in the Oil carrier / Single parts corresponds to the numbered list below the illustration. For the X6 E71 30dX, you can identify the Oil carrier by locating its position on the schematic, which then links to the official BMW part number 32416782538 for the Steering section.
