Power steering pump/Adaptive Drive for BMW X6 E71 30dX

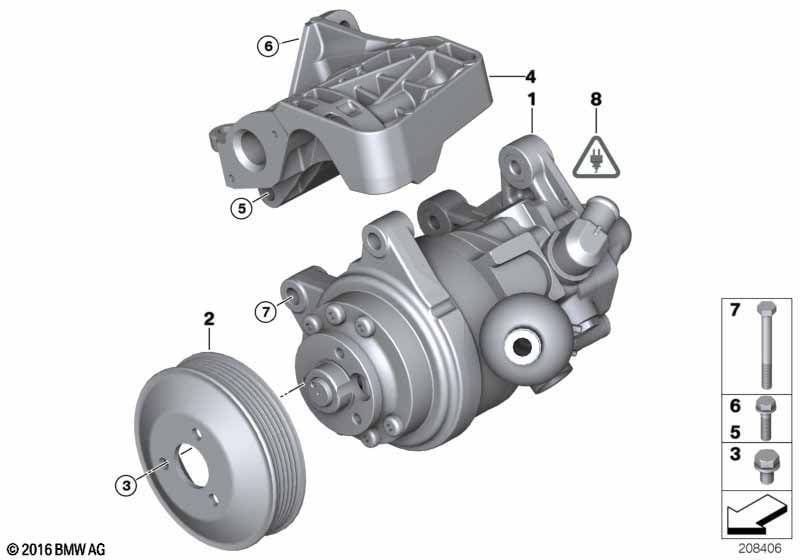

This Power steering pump/Adaptive Drive technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=Yes |
||||||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=Yes |
|||||||||
| 01 | Tandem pump | 1 | 10/2008 | 32416784837 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Active steering and Chassis & suspens. setup"Adaptive Drive" |
S217A=Yes S2VAA=Yes |
|||||||||
| 01 | Tandem pump | 1 | 10/2008 | 32416781012 | $1497.15 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Tandem pump | 1 | 10/2008 | 32416787351 | +core | Shop at ECS Tuning | ||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" and Active steering |
S2VAA=Yes S217A=No |
|||||||||
| 01 | Tandem pump | 1 | 10/2008 | 32416787350 | +core | Shop at ECS Tuning | ||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=Yes |
|||||||||
| 02 | Pulley | D=116MM | 1 | 32427516620 | $43.84 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Bracket, power steering pump | 1 | 32427799862 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt with washer | M8X35-U1 | 2 | 07119905533 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X28-ZNNIV SI | 1 | 07119905530 | $0.71 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M10X140-U1-8.8 | 2 | 07119906029 | $2.47 | Shop at ECS Tuning | ||||
| 08 | Universal socket housing uncoded | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Terminal socket MCON 1.2 ELA | 1,0-1,5MM² SN | 1 | 12527545855 | $0.50 | Shop at ECS Tuning | ||||
| -- | Terminal socket MCON 1.2 ELA | 0,5-0,75MM² AG | 1 | 12527545858 | $0.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
