Steering wheel airbag multifunctional for BMW 5 Series E61 LCI 520d (2008)

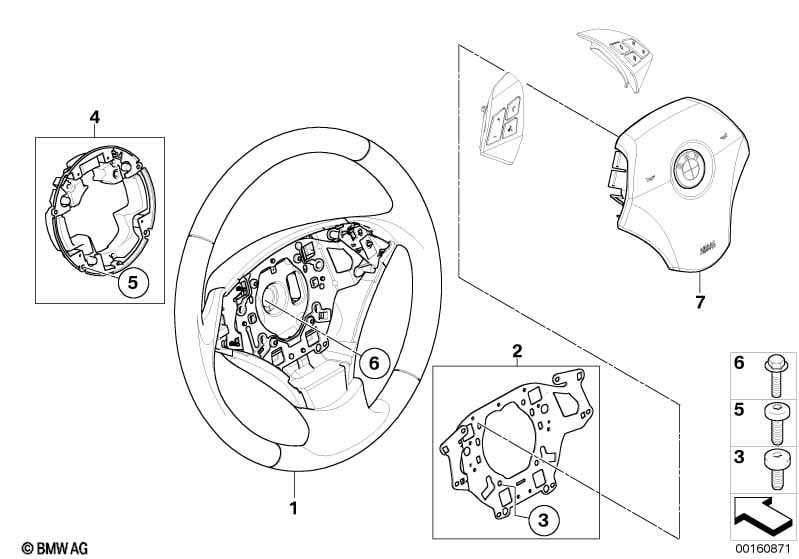

This Steering wheel airbag multifunctional technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Sports leather steering wheel |
S255A=No |
||||||||
| 01 | Leather steering wheel | SCHWARZ | 1 | 32346774456 | $372.29 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Steering wheel heater |
S248A=Yes |
|||||||||
| 01 | Leather steering wheel | SCHWARZ | 1 | 32346774457 | $526.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lane departure warning |
S5ADA=Yes |
|||||||||
| 01 | St. wheel, leather, out-of-lane warning | SCHWARZ | 1 | 32346774127 | $232.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Steering wheel heater and Lane departure warning |
S248A=Yes S5ADA=Yes |
|||||||||
| 01 | St. wheel, leather, out-of-lane warning | SCHWARZ | 1 | 32346774128 | $606.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Mounting plate steering wheel with bolts | 1 | 32346772987 | $22.99 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Torx screw | M5X12,5MM | 4 | 32346766011 | $0.80 | Shop at ECS Tuning | ||||
| 03 | Torx screw | M5X12,5MM | 4 | 32346766011 | $0.80 | Shop at ECS Tuning | ||||
| For vehicles with Sport automatic transmission or Automatic transmission |
S2TBA=Yes S205A=Yes |
|||||||||
| 04 | Steering wheel absorber with screw | 1 | 32346770069 | $73.48 | Shop at ECS Tuning | |||||
| 05 | Mounting screw | M3,5X10MM | 4 | 32346763370 | $0.45 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M12 | 1 | 32311159951 | $3.42 | Shop at ECS Tuning | ||||
| 07 | Airbag module, driver's side | 1 | 32346774449 | $850.79 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
