Hydro steering-oil pipes for BMW 5 Series E61 LCI 520d (2010)

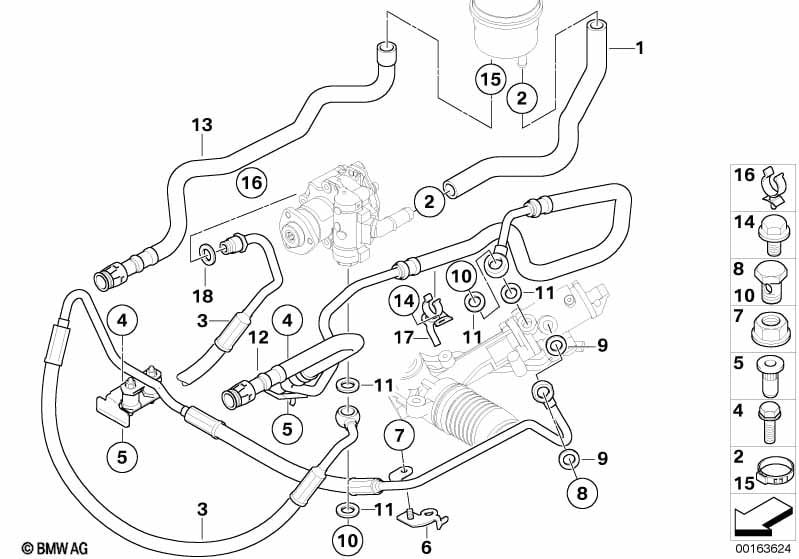

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction pipe | 1 | 32416850576 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 01 | Suction pipe | 1 | 32416850578 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 01 | Suction pipe | 1 | 32416850577 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hose clamp | 2 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 03 | Expansion hose | 1 | 32416777276 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 03 | Expansion hose | 1 | 32416777286 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 03 | Expansion hose | 1 | 32416777281 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M6X20 | 3 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Blind rivet nut, flat headed | M6 | 2 | 17117571134 | $1.10 | Shop at ECS Tuning | ||||
| 06 | Bracket, console | 1 | 32416761541 | $4.62 | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Banjo bolt with check valve | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=No |
|||||||||
| 10 | Hollow bolt | M16X28 | 2 | 32416852470 | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 10 | Hollow bolt | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=No |
|||||||||
| 11 | Gasket ring | A16X20-CUSN | 4 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 11 | Gasket ring | A16X20-CUSN | 2 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 12 | Return pipe | 1 | 32416777277 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package |
S1CBA=Yes |
|||||||||
| 12 | Return pipe | 1 | 32416777277 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 12 | Return pipe | 1 | 32416777282 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=No |
|||||||||
| 13 | radiator return line | 1 | 32416782804 | Shop at ECS Tuning | ||||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 13 | radiator return line | 1 | 32416761499 | +core | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M6X10 | 1 | 07119903842 | $0.45 | Shop at ECS Tuning | ||||
| For vehicles with Active steering |
S217A=No |
|||||||||
| 15 | Hose clamp | 1 | 32416751128 | $0.98 | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 15 | Hose clamp | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 16 | Hose clamp | 1 | 32416767170 | $0.62 | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=No |
|||||||||
| 17 | Bracket, return line | 1 | 32416782612 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Active steering |
S217A=Yes |
|||||||||
| 18 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
