Hydro steering-oil pipes for BMW X6 E71 30dX

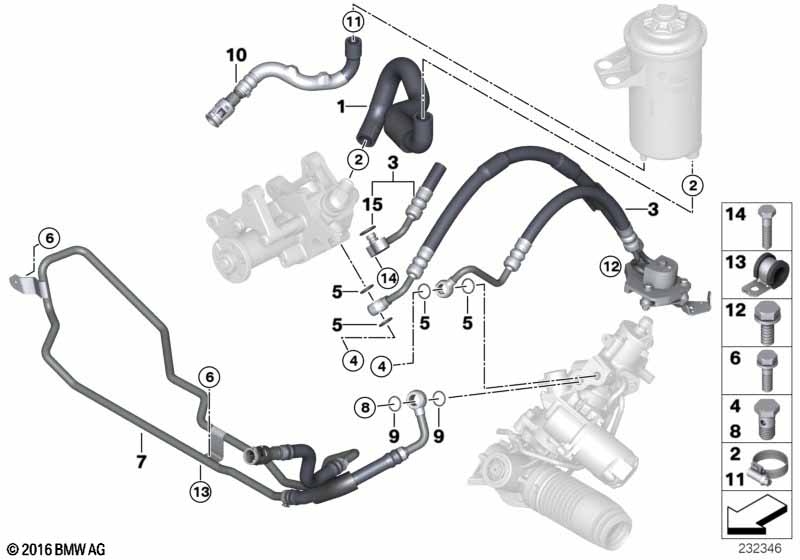

This Hydro steering-oil pipes technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction pipe | 1 | 10/2008 | 32416785419 | $38.91 | Shop at ECS Tuning | ||||
| 02 | Hose clamp | D= 25MM | 2 | 10/2008 | 04/2009 | 32416763470 | $1.27 | Shop at ECS Tuning | ||
| 02 | Hose clamp | L16-30 | 2 | 10/2008 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 03 | Expansion hose | 1 | 10/2008 | 32416791447 | Shop at ECS Tuning | |||||
| 04 | Hollow bolt | M14X1,5X26 | 1 | 10/2008 | 32416852469 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A14X18-CUSN | 2 | 10/2008 | 07/2010 | 07119906464 | $0.25 | Shop at ECS Tuning | ||
| 05 | Gasket ring | A14X20-CUSN | 2 | 07/2010 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M6X20 | 3 | 10/2008 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=No |
|||||||||
| 07 | Return pipe | 1 | 10/2008 | 32416787043 | Shop at ECS Tuning | |||||
| For vehicles with Active steering and Chassis & suspens. setup"Adaptive Drive" |
S217A=Yes S2VAA=No |
|||||||||
| 07 | Return pipe, active steering | 1 | 10/2008 | 32416785423 | Shop at ECS Tuning | |||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=No |
|||||||||
| 08 | Hollow bolt | M16X28 | 1 | 10/2008 | 32416852470 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A16X20-CUSN | 2 | 10/2008 | 07119906463 | $0.33 | Shop at ECS Tuning | |||
| 10 | radiator return line | 1 | 10/2008 | 32416785424 | $106.62 | Shop at ECS Tuning | ||||
| For vehicles with Active steering and Chassis & suspens. setup"Adaptive Drive" |
S217A=Yes S2VAA=No |
|||||||||
| 10 | radiator return line | 1 | 10/2008 | 32416785425 | Shop at ECS Tuning | |||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=No |
|||||||||
| 11 | Hose clamp | 1 | 10/2008 | 32416751127 | $1.12 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X15-U1-8.8 | 1 | 10/2008 | 07119902937 | $0.80 | Shop at ECS Tuning | |||
| 14 | Fillister-head screw | M8X35-10.9-ZNS3 | 1 | 10/2008 | 07119906650 | $0.87 | Shop at ECS Tuning | |||
| 15 | O-ring | 11X1,8 HNBR | 1 | 10/2008 | 32416788696 | $5.00 | Shop at ECS Tuning | |||
