Hydraulic steering lines/Adaptive Drive for BMW X6 E71 30dX

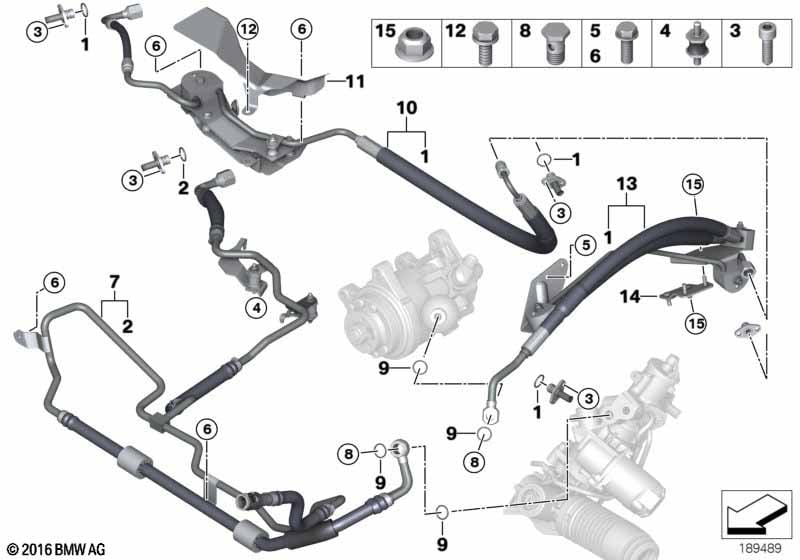

This Hydraulic steering lines/Adaptive Drive technical drawing provides a detailed breakdown of the assembly for the X6 E71 30dX. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=Yes |
|||||||||
| 01 | O-ring | 11X1,8 HNBR | 3 | 10/2008 | 32416788696 | $5.00 | Shop at ECS Tuning | |||
| 02 | O-ring | 11X1,8 HNBR | 1 | 10/2008 | 32416788696 | $5.00 | Shop at ECS Tuning | |||
| 03 | Fillister-head screw | M6X20-10.9-ZNS3 | 8 | 10/2008 | 07119906652 | $0.38 | Shop at ECS Tuning | |||
| 04 | Rubber Mounting | H=17 | 1 | 10/2008 | 32416769256 | Shop at ECS Tuning | ||||
| 04 | Vibration damper | H=25 | 1 | 10/2008 | 32416778960 | $22.90 | Shop at ECS Tuning | |||
| 05 | Collar screw | M6X18-ZNS3 | 2 | 10/2008 | 11537804636 | $0.60 | Shop at ECS Tuning | |||
| 06 | Hex bolt with washer | M6X20 | 5 | 10/2008 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 06 | ISA screw | M6X16-8.8-ZNNIV | 5 | 10/2008 | 07129905536 | $0.64 | Shop at ECS Tuning | |||
| 07 | combination return pipe | 1 | 10/2008 | 32416787041 | Shop at ECS Tuning | |||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" and Active steering |
S2VAA=Yes S217A=Yes |
|||||||||
| 07 | combination return pipe | 1 | 10/2008 | 32416787040 | Shop at ECS Tuning | |||||
| For vehicles with Chassis & suspens. setup"Adaptive Drive" |
S2VAA=Yes |
|||||||||
| 08 | Hollow bolt | M16X28 | 1 | 10/2008 | 32416852470 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A16X20-CUSN | 2 | 10/2008 | 07119906463 | $0.33 | Shop at ECS Tuning | |||
| 10 | Exp. hose for Adaptive Drive 2nd section | 1 | 10/2008 | 32416787045 | $228.63 | Shop at ECS Tuning | ||||
| 11 | Heat resistant plate | 1 | 10/2008 | 32416861940 | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M6X15-U1-8.8 | 4 | 10/2008 | 07119902937 | $0.80 | Shop at ECS Tuning | |||
| 13 | Exp. hose, Adaptive Drive 1st section | 1 | 10/2008 | 32416788256 | $228.63 | Shop at ECS Tuning | ||||
| 14 | Bracket for oil pan, rear | 1 | 10/2008 | 32416772332 | Shop at ECS Tuning | |||||
| 15 | Hex nut with plate | M6-8-ZNNIV SI | 4 | 10/2008 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
