hydraulic pump for BMW 5 Series F10 530d (2010)

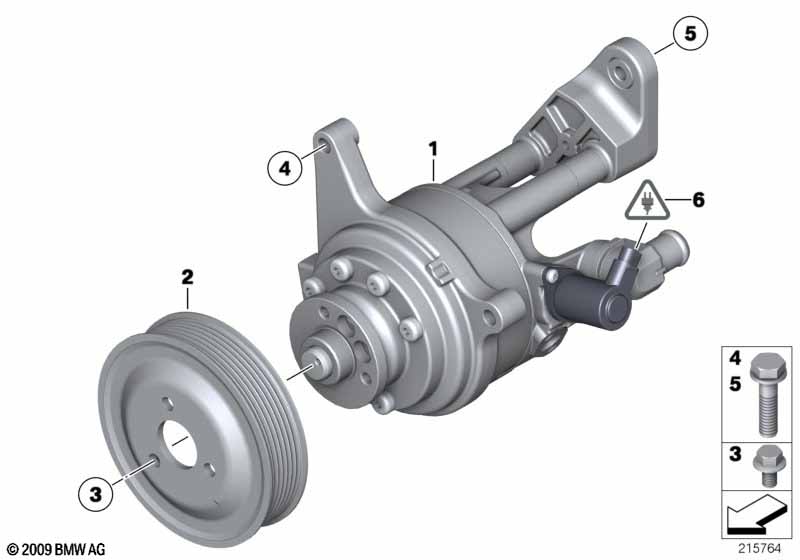

This hydraulic pump technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | hydraulic pump | DYNAMIC DRIVE | 1 | 32416850591 | +core | Shop at ECS Tuning | ||||
| 02 | Pulley | 1 | 32427800331 | Shop at ECS Tuning | ||||||
| 03 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X33-U1 | 2 | 07119906149 | Shop at ECS Tuning | |||||
| 05 | Hex bolt with washer | M8X33-U1 | 1 | 07119906149 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
