Power steering/oil pipe/dynamic drive for BMW 5 Series F10 530d (2010)

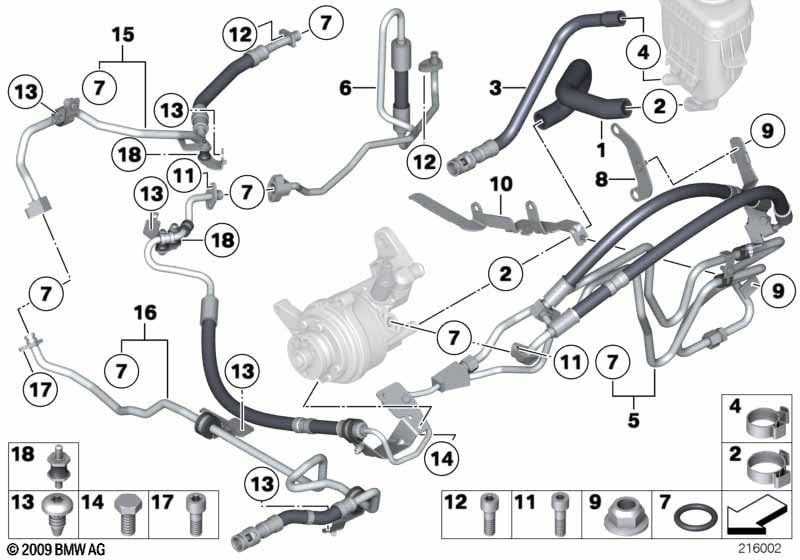

This Power steering/oil pipe/dynamic drive technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Dynamic Drive |
S229A=Yes |
||||||||
| 01 | Suction pipe | 1 | 32416850311 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | D= 25MM | 2 | 32416763470 | $1.27 | Shop at ECS Tuning | ||||
| 03 | radiator return line | 1 | 32416778503 | Shop at ECS Tuning | ||||||
| 04 | Hose clamp | 1 | 32416751127 | $1.12 | Shop at ECS Tuning | |||||
| 05 | Expansion hose Dynamic Drive 1st part | PART 1 | 1 | 32416778504 | Shop at ECS Tuning | |||||
| 06 | Expansion hose Dynamic Drive 2nd part | PART 2 | 1 | 32416795131 | Shop at ECS Tuning | |||||
| 07 | O-ring | 11X1,8 HNBR | 4 | 32416788696 | $5.00 | Shop at ECS Tuning | ||||
| 08 | Bracket, expansion hose | 1 | 32416778508 | Shop at ECS Tuning | ||||||
| 09 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Bracket for exp. hose Dynamic Drive | 1 | 32416788625 | Shop at ECS Tuning | ||||||
| 11 | Fillister-head screw | M6X18-10.9-ZNS3 | 4 | 07119906651 | Shop at ECS Tuning | |||||
| 12 | ISA screw | M8X22-ZNNIV SI | 2 | 07129905769 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Torx screw, self-threading | M6X13-ZNNIVSI | 5 | 31146786689 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Return pipe Dynamic Drive | 1 | 32416796370 | Shop at ECS Tuning | ||||||
| 16 | Return pipe Dynamic Drive | TEIL 2 | 1 | 32416796372 | Shop at ECS Tuning | |||||
| 17 | ISA screw | M8X20-8.8-ZNS3 | 1 | 07129904065 | $1.96 | Shop at ECS Tuning | ||||
| 18 | Rubber Mounting | H=17 | 3 | 32416769256 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut with plate | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
