Power steering pump for BMW 3 Series E90 LCI 318d (2011)

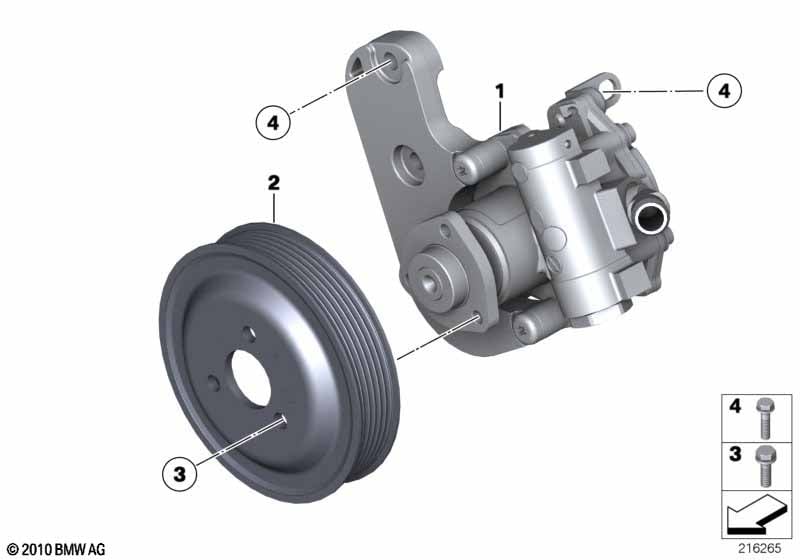

This Power steering pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=Yes S205A=Yes S216A=No |
|||||||||
| 01 | Power steering pump | 1 | 32416867534 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=Yes S216A=No |
|||||||||
| 01 | Power steering pump | 1 | 32416867534 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=No S216A=No |
|||||||||
| 01 | Power steering pump | 1 | 32416867534 | Shop at ECS Tuning | ||||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=Yes S205A=Yes S216A=No |
|||||||||
| 02 | Pulley | STAHL D=130MM | 1 | 32428519873 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=Yes S216A=No |
|||||||||
| 02 | Pulley | STAHL D=130MM | 1 | 32428519873 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=No S216A=No |
|||||||||
| 02 | Pulley | STAHL D=130MM | 1 | 32428519873 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=Yes S205A=Yes S216A=No |
|||||||||
| 03 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=Yes S216A=No |
|||||||||
| 03 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=No S216A=No |
|||||||||
| 03 | Hex bolt with washer | M8X14 ZNNIV SI | 3 | 07119905527 | $0.47 | Shop at ECS Tuning | ||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=Yes S205A=Yes S216A=No |
|||||||||
| 04 | Hex bolt with washer | M8X33-U1 | 3 | 07119906149 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=Yes S216A=No |
|||||||||
| 04 | Hex bolt with washer | M8X33-U1 | 3 | 07119906149 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and Automatic transmission and Hydro steering-servotronic |
S1CBA=No S205A=No S216A=No |
|||||||||
| 04 | Hex bolt with washer | M8X33-U1 | 3 | 07119906149 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318d Power steering pump?
- This technical diagram illustrates the Power steering pump within the Steering group for the 3 Series E90 LCI 318d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Power steering pump (Part #32416867534).
- Which models use the hardware listed in this Power steering pump?
- The hardware and components featured in the Power steering pump are specific to the 3 Series E90 LCI 318d produced during 2011. These technical specifications ensure that parts like the Power steering pump (32416867534) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Power steering pump assembly?
- Each item in the Power steering pump corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318d, you can identify the Power steering pump by locating its position on the schematic, which then links to the official BMW part number 32416867534 for the Steering section.
