Hydro steering-tandem vane pump for BMW 7 Series E32 735iL (1992)

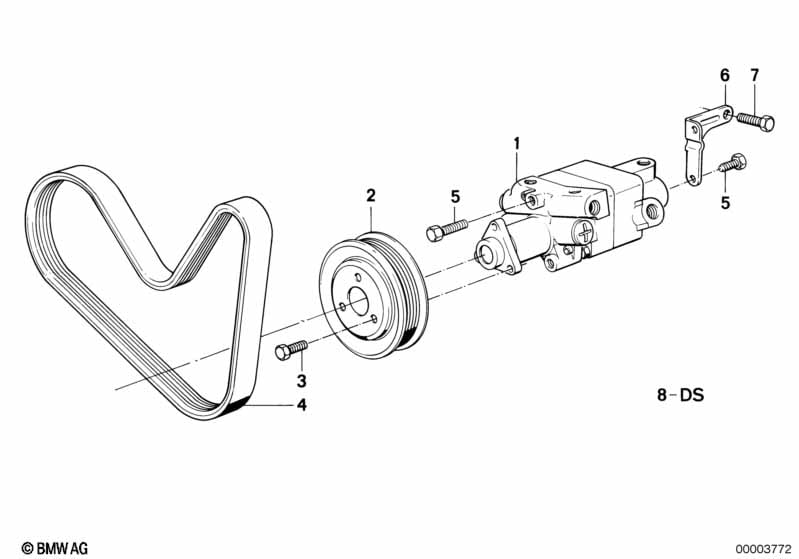

This Hydro steering-tandem vane pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO LEVELLING SYSTEM ONLY APPLIES TO ASC+T |
|||||||||
| 01 | Tandem vane pump | 130BAR | 1 | 32411132277 | $513.36 | ENDED | Shop at ECS Tuning | |||
| 01 | AT-tandem vane pump | 130BAR | 1 | 32411132726 | $866.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Pulley | 1 | 32421717390 | $63.50 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M8X16 | 3 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Fan belt | 9,5X865 SRC | 1 | 11231709638 | $7.71 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X20-Z3 | 3 | 07119913958 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Support | 1 | 32421736931 | $6.37 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M8X20-ZNS3 | 1 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Gasket set tandem vane pump | ZF | 1 | 32411134836 | $41.08 | Shop at ECS Tuning | ||||
