Steer.col.-steer. spin. upper for BMW 7 Series E32 740i (1994)

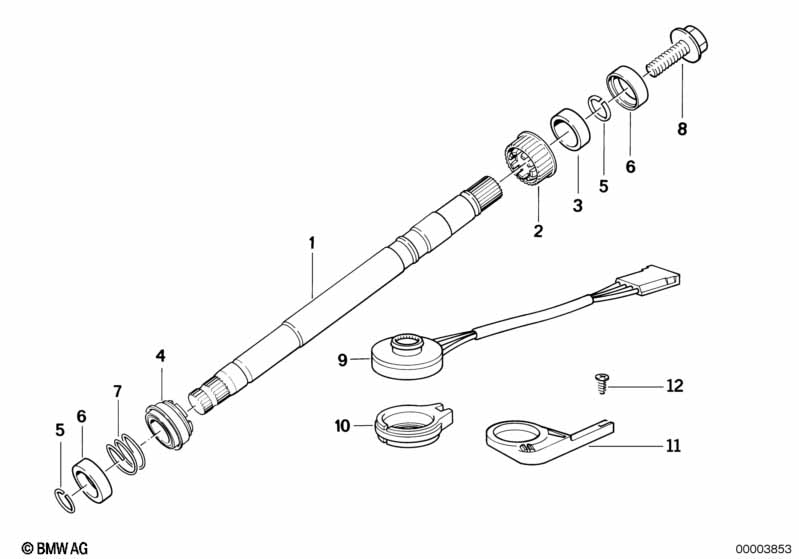

This Steer.col.-steer. spin. upper technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | |||||||||
| 01 | Steering spindle upper | 1 | 32311160060 | $91.90 | Shop at ECS Tuning | |||||
| 02 | Steering spindle bearing plastic | 1 | 02/1990 | 32311158835 | $10.93 | Shop at ECS Tuning | ||||
| 03 | backup ring | 1 | 02/1990 | 32311158478 | $2.43 | Shop at ECS Tuning | ||||
| 04 | Steering spindle bearing plastic | 41,9X25,0X17,0 | 1 | 02/1990 | 32311158837 | $17.05 | Shop at ECS Tuning | |||
| 05 | Snap ring | 2 | 02/1990 | 32311157968 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Ring | 2 | 02/1990 | 32311157966 | $1.82 | Shop at ECS Tuning | ||||
| 07 | Compression spring | 1 | 02/1990 | 32331158479 | $1.38 | Shop at ECS Tuning | ||||
| 08 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 05/1992 | 07149890645 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
=Yes |
|||||||||
| 09 | Steering angle sensor | 1 | 05/1990 | 32311159019 | $1006.51 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) ONLY APPLIES TO ELECTRIC ADJUSTING |
=Yes |
|||||||||
| 09 | Steering angle sensor | 1 | 11/1991 | 32311161536 | $291.28 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) |
=Yes |
|||||||||
| 10 | Supporting ring | 1 | 05/1990 | 32311159461 | $16.41 | Shop at ECS Tuning | ||||
| For vehicles with Electronic Damper Control (EDC) ONLY APPLIES TO ELECTRIC ADJUSTING |
=Yes |
|||||||||
| 11 | Supporting ring | 1 | 09/1990 | 32311160494 | $10.83 | ENDED | Shop at ECS Tuning | |||
| 12 | Screw | N-TS4X10-ZN | 1 | 09/1990 | 07129925826 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
