Steering column-elec.adjust./singl.parts for BMW 7 Series E32 730iL (1994)

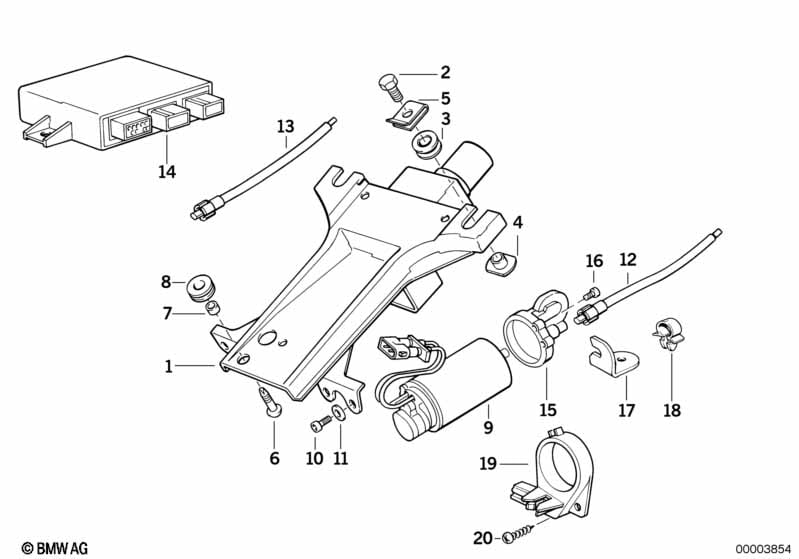

This Steering column-elec.adjust./singl.parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ELECTRIC ADJUSTING | |||||||||
| 01 | Steering column tube | 1 | 32311159432 | $714.24 | ENDED | Shop at ECS Tuning | ||||
| 02 | Torx-bolt with washer | ASA M8X22 | 2 | 07147248303 | $0.60 | Shop at ECS Tuning | ||||
| 03 | Guide bush | 2 | 32311160653 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 04 | Welding nut | M8 | 2 | 32311159024 | $1.63 | Shop at ECS Tuning | ||||
| 06 | Fracture bolt | 2 | 32311159030 | $6.95 | Shop at ECS Tuning | |||||
| 07 | Spacer tube | 2 | 32311111186 | $0.88 | Shop at ECS Tuning | |||||
| 08 | Guide bush | 2 | 32311093601 | $0.48 | Shop at ECS Tuning | |||||
| 09 | Transmission steering column adjusting | 2 | 32311161381 | $302.81 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Voltage regulator | 2 | 61318356185 | $141.42 | Shop at ECS Tuning | |||||
| 11 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Shaft vertical adjusting | 1 | 32311159443 | $16.33 | ENDED | Shop at ECS Tuning | ||||
| 13 | Shaft longitudinal adjusting | 1 | 32311159444 | $16.33 | Shop at ECS Tuning | |||||
| For vehicles with Memory |
=Yes |
|||||||||
| 14 | Steering column control unit | 1 | 32311160011 | $592.89 | Shop at ECS Tuning | |||||
| 15 | Voltage regulator | 2 | 03/1991 | 61318356185 | $141.42 | Shop at ECS Tuning | ||||
| 15 | Voltage regulator | 2 | 03/1991 | 61318356185 | $141.42 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw | M2,5X10 | 4 | 03/1991 | 07119906429 | $1.39 | Shop at ECS Tuning | |||
| 16 | Fillister head screw | M2,5X10 | 4 | 03/1991 | 07119906429 | $1.39 | Shop at ECS Tuning | |||
| 19 | Cable holder | 1 | 32311160647 | $1.89 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
