Steering wheel for BMW 7 Series E32 730i (1994)

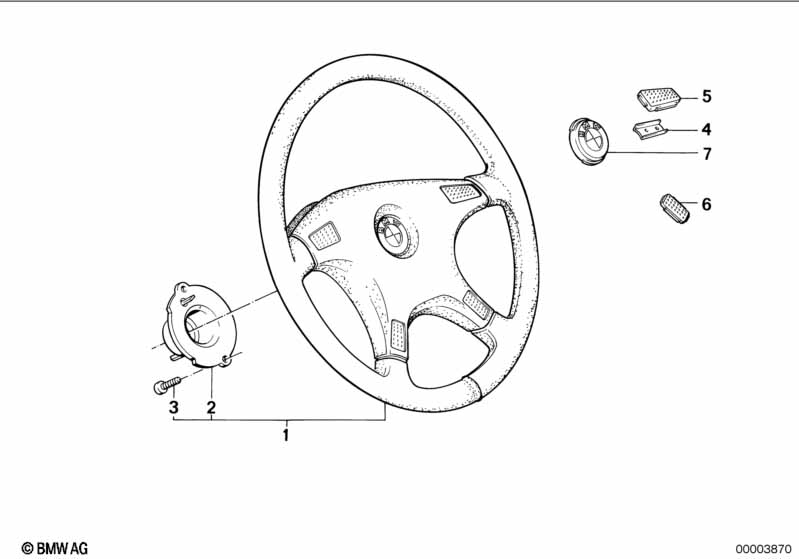

This Steering wheel technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Leather steering wheel | 1 | 32331156551 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Leather steering wheel | D=395MM | 1 | 32331158707 | $578.00 | Shop at ECS Tuning | ||||
| 02 | Slip ring | 1 | 32331152896 | $10.25 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
| 04 | contact spring | 4 | 32331155956 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Horn pad, left | 1 | 32331158374 | $2.46 | Shop at ECS Tuning | |||||
| 05 | Horn pad, right | 1 | 32331158375 | $5.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Horn pad | 2 | 32331158373 | $1.67 | Shop at ECS Tuning | |||||
| 07 | Badge | 1 | 32331117279 | $7.32 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
