Oil carrier levelling device/singl.parts for BMW 7 Series E32 730iL (1992)

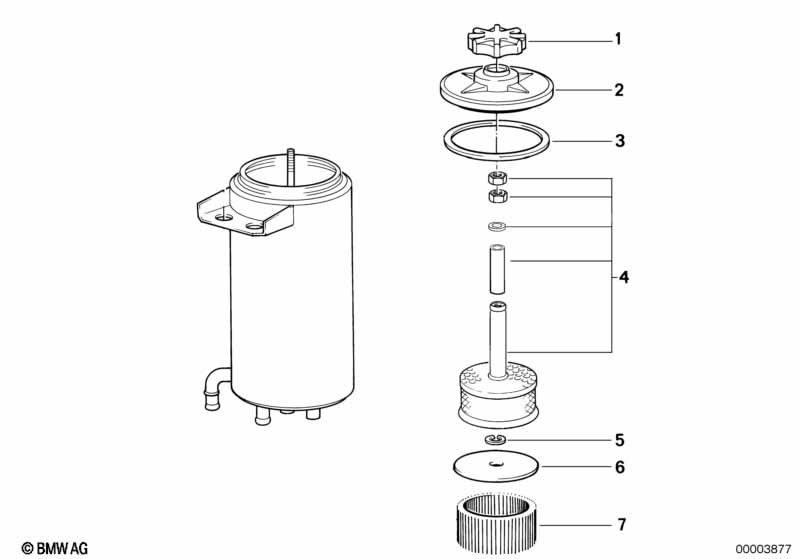

This Oil carrier levelling device/singl.parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SINGLE COMPONENTS FOR ONLY APPLIES TO LEVELLING SYSTEM |
|||||||||
| only applies to | ||||||||||
| -- | Oil carrier | BELLINO | X | 03/1988 | 32411131665 | $118.17 | ENDED | Shop at ECS Tuning | ||
| 01 | Cap | 1 | 03/1988 | 32411128923 | $7.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | 1 | 03/1988 | 32411134842 | $19.00 | Shop at ECS Tuning | ||||
| 03 | Gasket | 1 | 03/1988 | 32411134843 | $2.93 | Shop at ECS Tuning | ||||
| 05 | Securing plate | 1 | 03/1988 | 32411134846 | $1.88 | Shop at ECS Tuning | ||||
| 06 | Cover | 1 | 03/1988 | 32411134848 | $5.23 | Shop at ECS Tuning | ||||
| 07 | Filter cartridge | 1 | 03/1988 | 32411128167 | $14.57 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
