Hydro steering-tandem vane pump for BMW 7 Series E32 730i (1994)

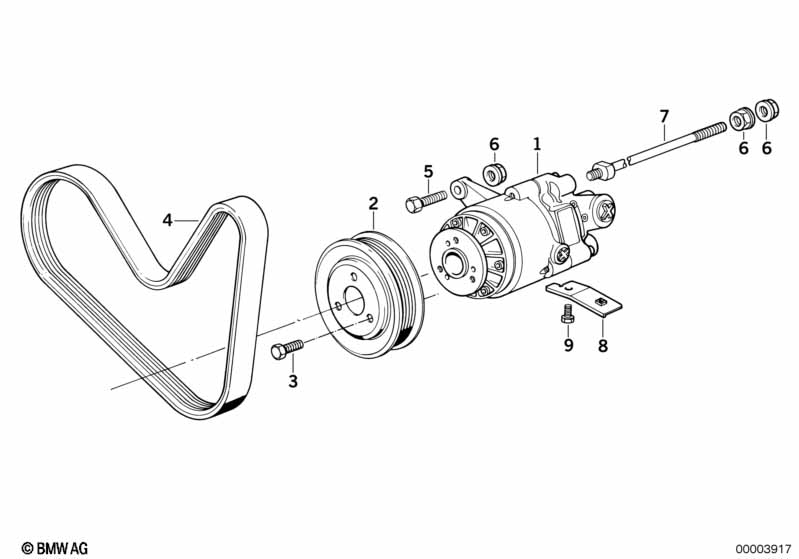

This Hydro steering-tandem vane pump technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ASC+T |
=Yes |
|||||||||
| 01 | Tandem vane pump | VICKERS | 1 | 32411140908 | $1039.19 | +core | Shop at ECS Tuning | |||
| For vehicles with Self-levelling suspension |
=Yes |
|||||||||
| 01 | Tandem vane pump | VICKERS | 1 | 32411140908 | $1039.19 | +core | Shop at ECS Tuning | |||
| 02 | Pulley | D=105MM | 1 | 32421736934 | $31.68 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M8X18-U1-8.8 | 3 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M8X30-Z3 | 1 | 07119915085 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 07 | Threaded bolt | M8X144 | 1 | 32421747289 | $5.58 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
