Oil pipes, ASC+T for BMW 7 Series E32 740i (1994)

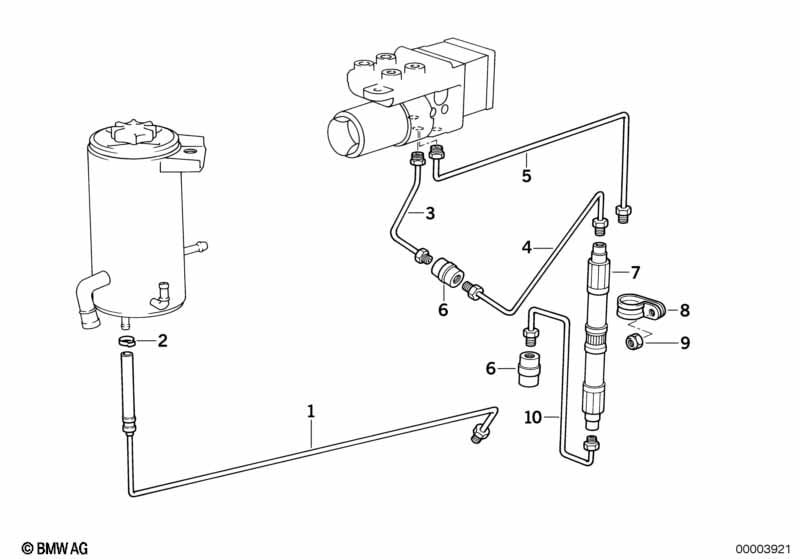

This Oil pipes, ASC+T technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Self-levelling suspension |
S220A=Yes |
|||||||||
| 01 | Return pipe | 1 | 37131139385 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hose clamp | D=10,8-13,3 | 1 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Intermediate piece | M10X1 | 2 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 07 | Pressure hose assy | 1 | 34501159360 | $118.07 | ENDED | Shop at ECS Tuning | ||||
| 08 | Clamp | D=23/6,4 | 1 | 12521270936 | $1.77 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740i Oil pipes, ASC+T?
- This technical diagram illustrates the Oil pipes, ASC+T within the Steering group for the 7 Series E32 740i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Return pipe (Part #37131139385).
- Which models use the hardware listed in this Oil pipes, ASC+T?
- The hardware and components featured in the Oil pipes, ASC+T are specific to the 7 Series E32 740i produced during 1994. These technical specifications ensure that parts like the Return pipe (37131139385) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Oil pipes, ASC+T assembly?
- Each item in the Oil pipes, ASC+T corresponds to the numbered list below the illustration. For the 7 Series E32 740i, you can identify the Return pipe by locating its position on the schematic, which then links to the official BMW part number 37131139385 for the Steering section.
