Sports steering wheel for BMW 5 Series E34 525i (1990)

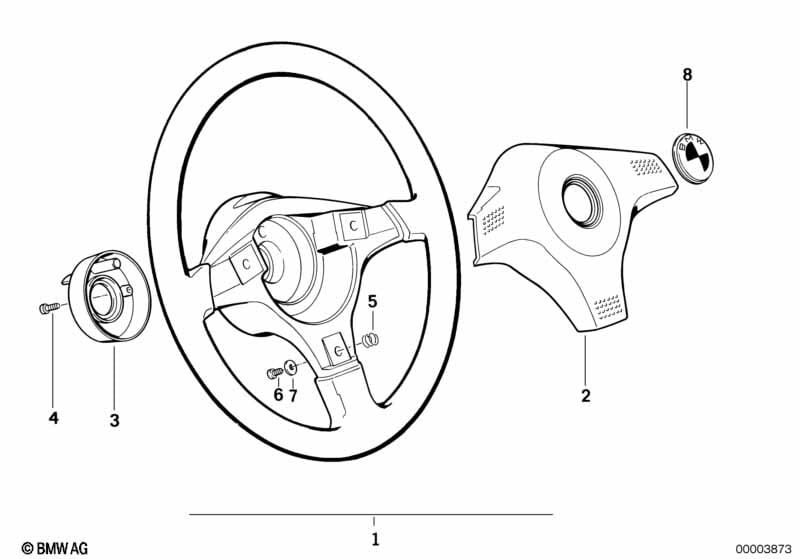

This Sports steering wheel technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sports steering wheel | D=385MM | 1 | 32331160675 | $326.95 | ENDED, ABE 9787284 | Shop at ECS Tuning | |||
| 02 | Horn pad | 1 | 32331158880 | $68.17 | Shop at ECS Tuning | |||||
| 03 | Slip ring | 1 | 32331152896 | $10.25 | Shop at ECS Tuning | |||||
| 04 | Fillister head screw | M3,5X8 | 2 | 32331117126 | $0.50 | Shop at ECS Tuning | ||||
| 05 | Compression spring | 3 | 32311159342 | $2.80 | ENDED | Shop at ECS Tuning | ||||
| 06 | Screw | 4X9,5 | 3 | 32311159064 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 07 | Insulating washer | 3 | 32331159745 | $1.82 | Shop at ECS Tuning | |||||
| 08 | Badge | 1 | 32331117279 | $7.32 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
