Oil carrier / Single parts for BMW 5 Series E34 525i (1990)

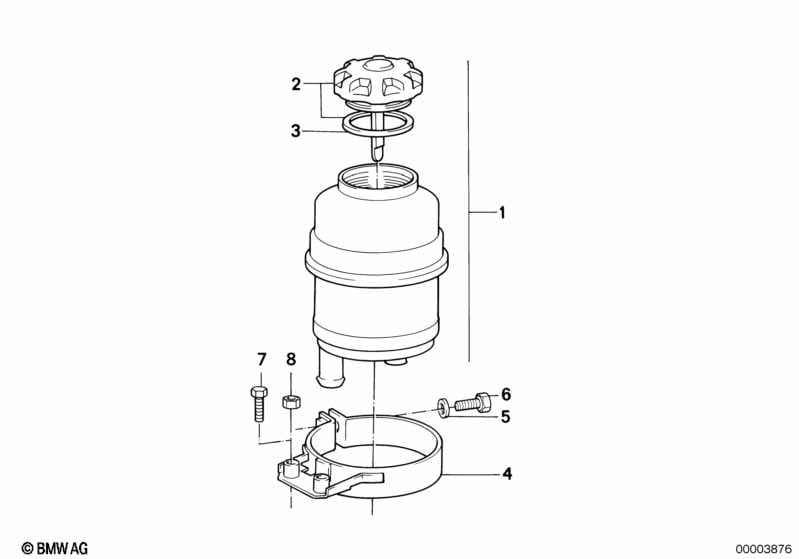

This Oil carrier / Single parts technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil carrier | ATF | 1 | 07/1996 | 32411097164 | $64.84 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | ATF | 1 | 07/1996 | 32411128332 | $14.60 | ENDED | Shop at ECS Tuning | ||
| 03 | Gasket ring | 1 | 32411128333 | $2.38 | Shop at ECS Tuning | |||||
| 04 | Clamp | 1 | 32411133983 | $10.17 | Shop at ECS Tuning | |||||
| 05 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16-8.8 ZN | 1 | 07119913466 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 08 | Self-locking hex nut | M6-10 ZN | 2 | 07/1996 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 08 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning |
