Steering wheel airbag for BMW 1 Series F20 114i (2015)

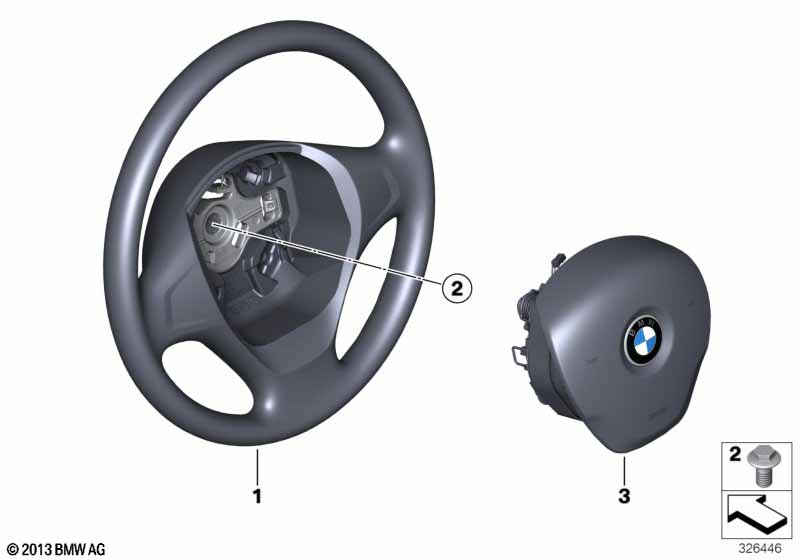

This Steering wheel airbag technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 114i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW recommends the Security Kit TNR 2 464 228 as theft protection. For vehicles with Sports leather steering wheel and M leather steering wheel |
S255A=No S710A=No |
||||||||
| 02 | Torx screw, micro-encapsulated | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| 03 | Airbag module, driver's side | 1 | 32306791330 | Shop at ECS Tuning | ||||||
